B-TANK
WATER TRUCK
BRING WATER WHERE YOU NEED IT.
A leaner, cost-efficient build for dust control and potable water — engineered with the renowned McLellan quality you can count on.
BUILT FOR
Dust control, construction, potable water, and more.

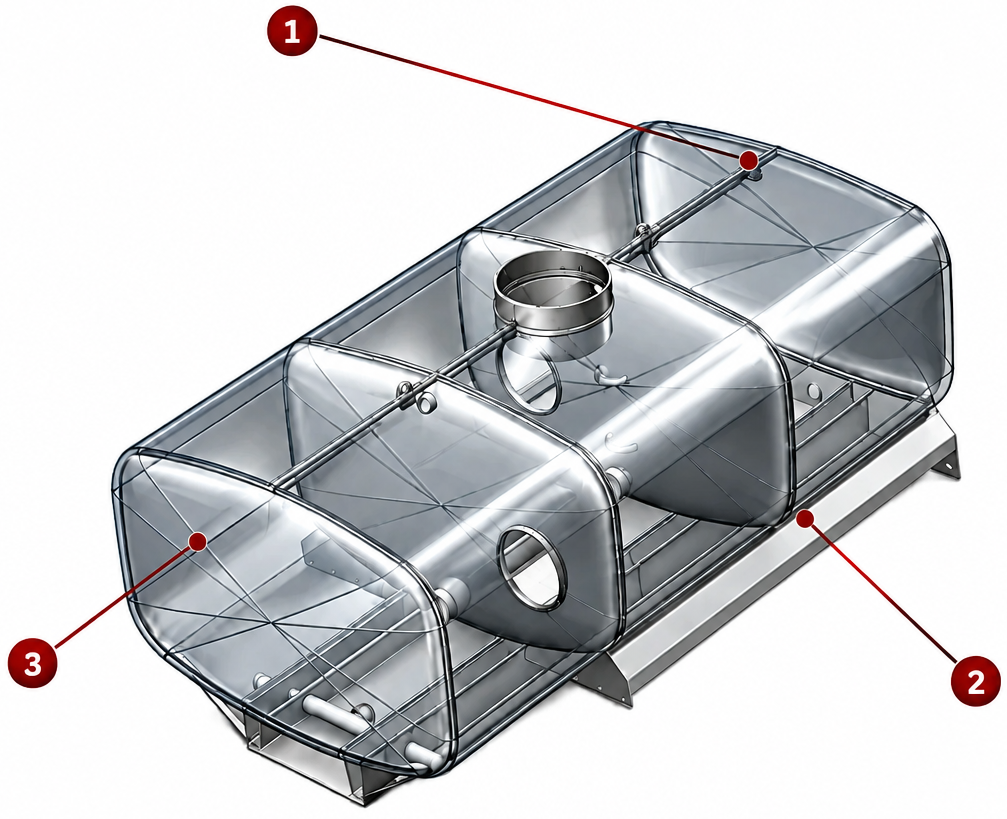

MCLELLAN "B" STYLE TANK CONSTRUCTION
Example configuration — built to your spec.
Single Longitudinal Weld Seam
One seam down the length of the shell instead of several — every weld you remove is a seam that can’t leak or split.
Box Section Sub-Frame
A closed box section holds its shape under load, whereas an open "L" section twists and leaves the tank fighting the chassis — working the seams loose.
Dished & Flanged Heads & Baffles
Increased structural integrity and road safety — prevents accelerated fluid movement when braking.
Choose the A-Tank for McLellan’s flagship, heavy-duty configuration with added structural reinforcement. For operations focused on essential performance and value, the B-Tank offers a leaner, cost-efficient build without compromising McLellan quality.
View the Full Comparison
Configured for the Way You Work

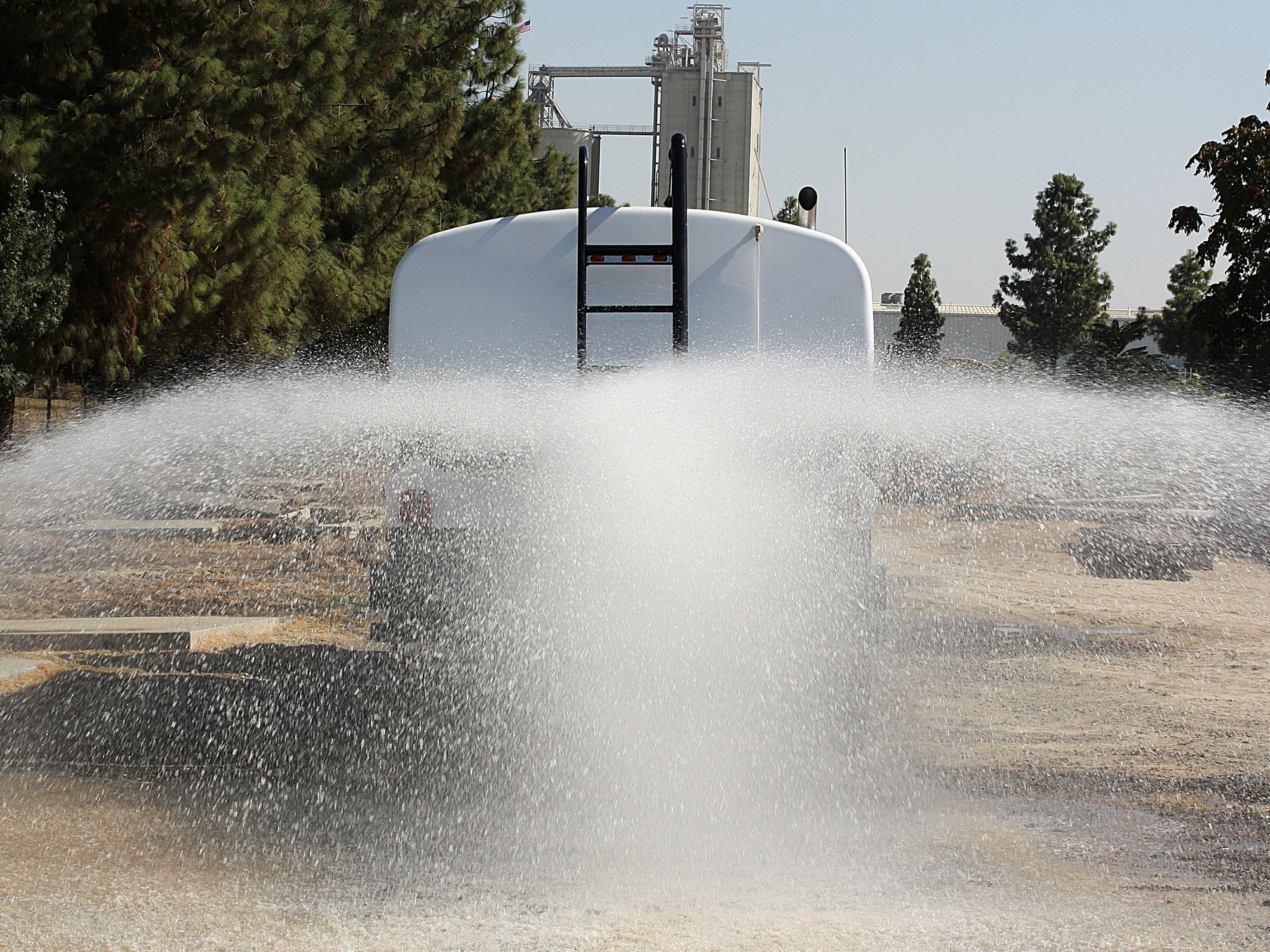

Water Distribution
Side spray, street flush, extra spray valves, and monitor assemblies.

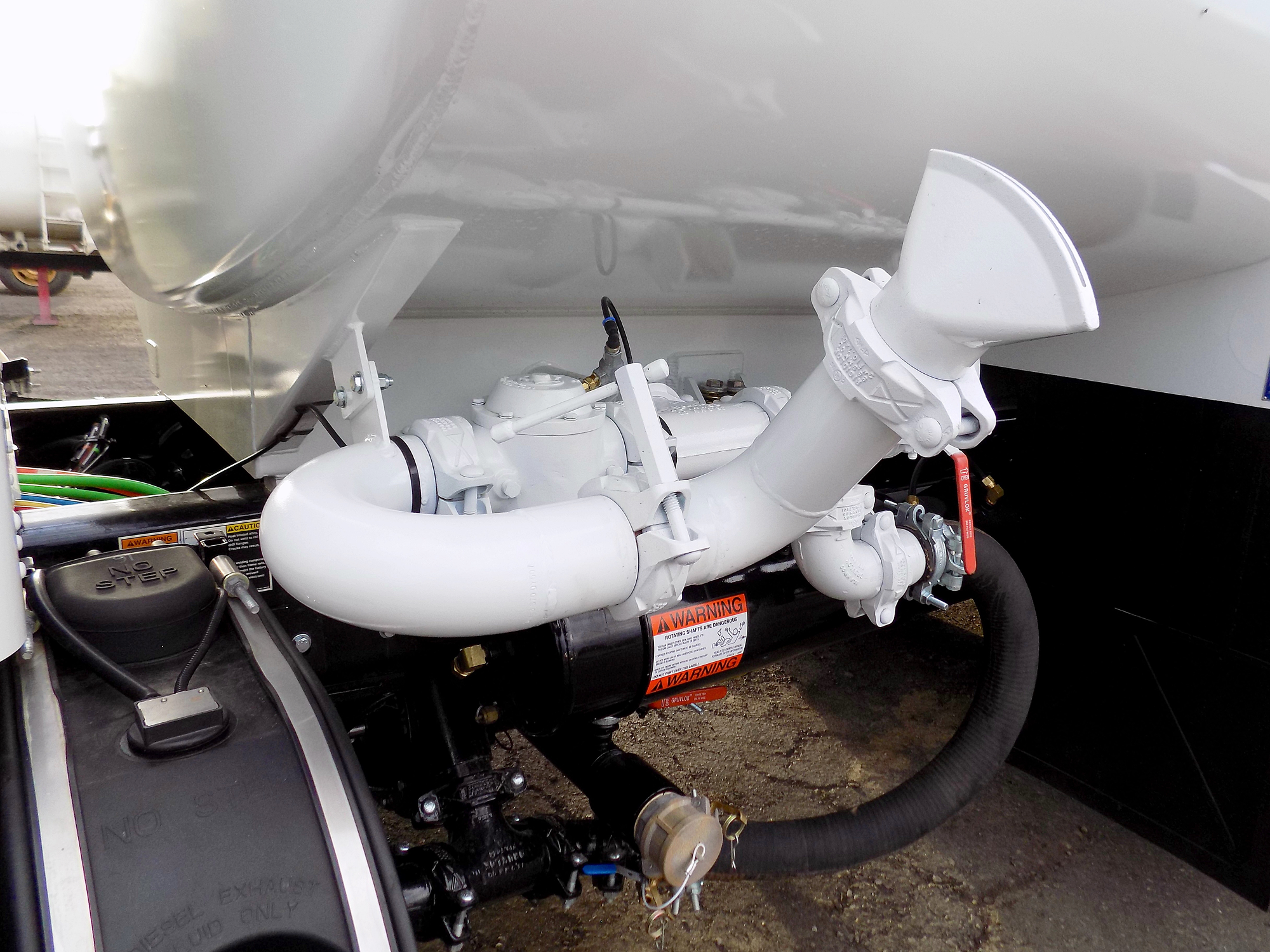

Self-Loading
Fill from a pond, ditch or hydrant without waiting on a water truck. Pump, valving, camlok couplings and suction hose.
Tank & Storage
Stainless shells and internal coatings for potable and corrosive duty, plus storage tubes and toolboxes to keep hose and tools on the truck.

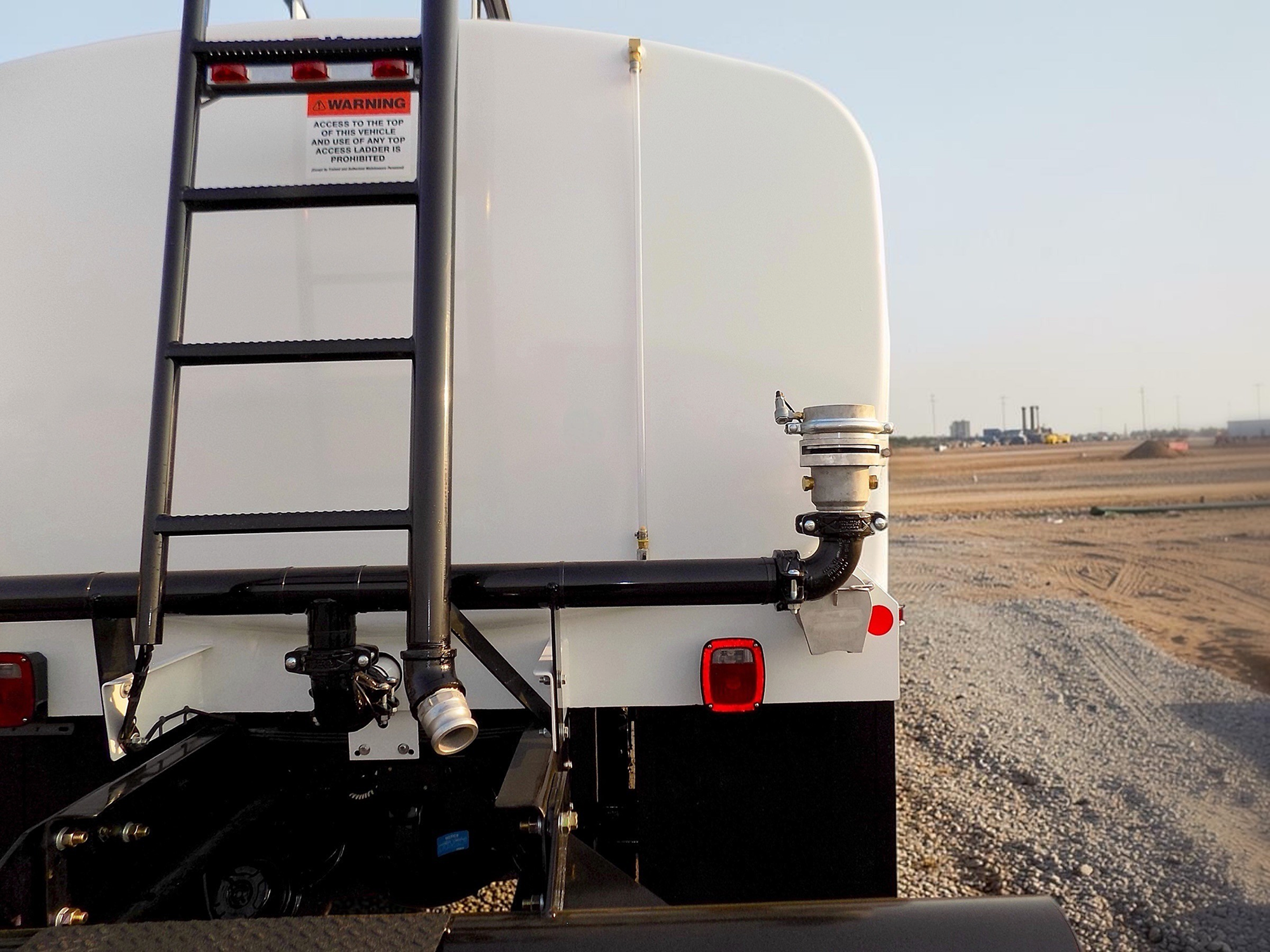

Site Visibility & Safety
Work lights, light bars, sight gauges and more.
- 2,000–6,500 gallon tanks
- Cab controls
- Four (4) spray valves – two front, two rear
- Diesel Engine, Hydraulic, or Direct Drive PTO
- PermaSlat mounting
- McLellan 4-point off-highway hold down system with coil springs
- Dished and flanged heads
- Short fenders

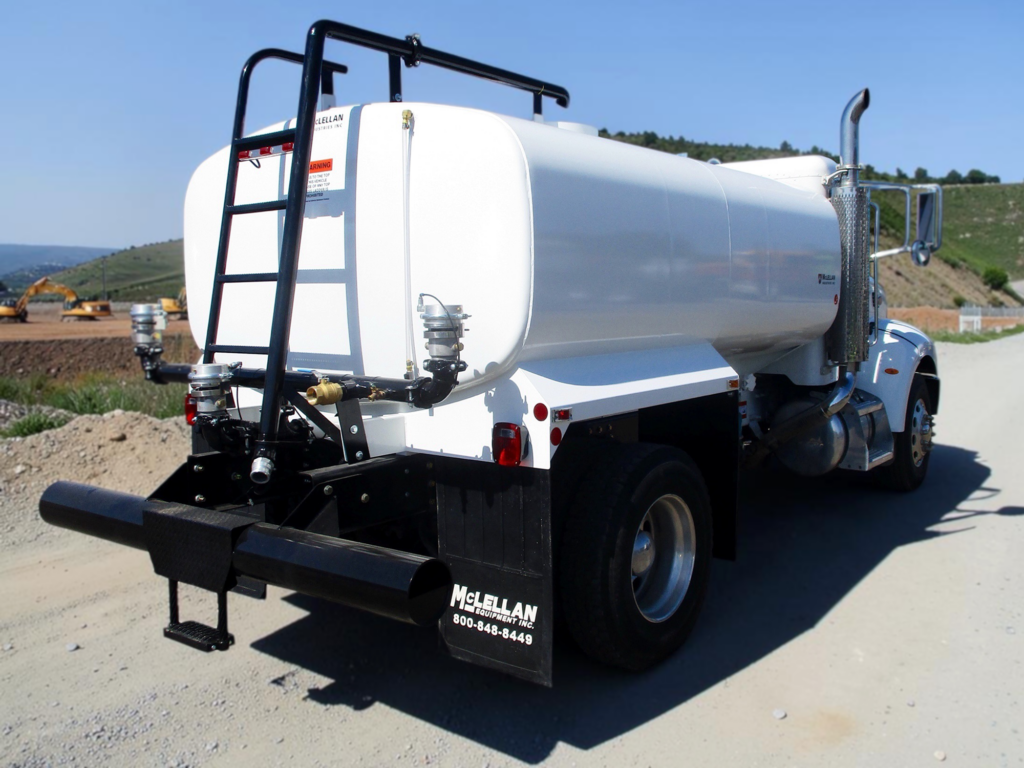

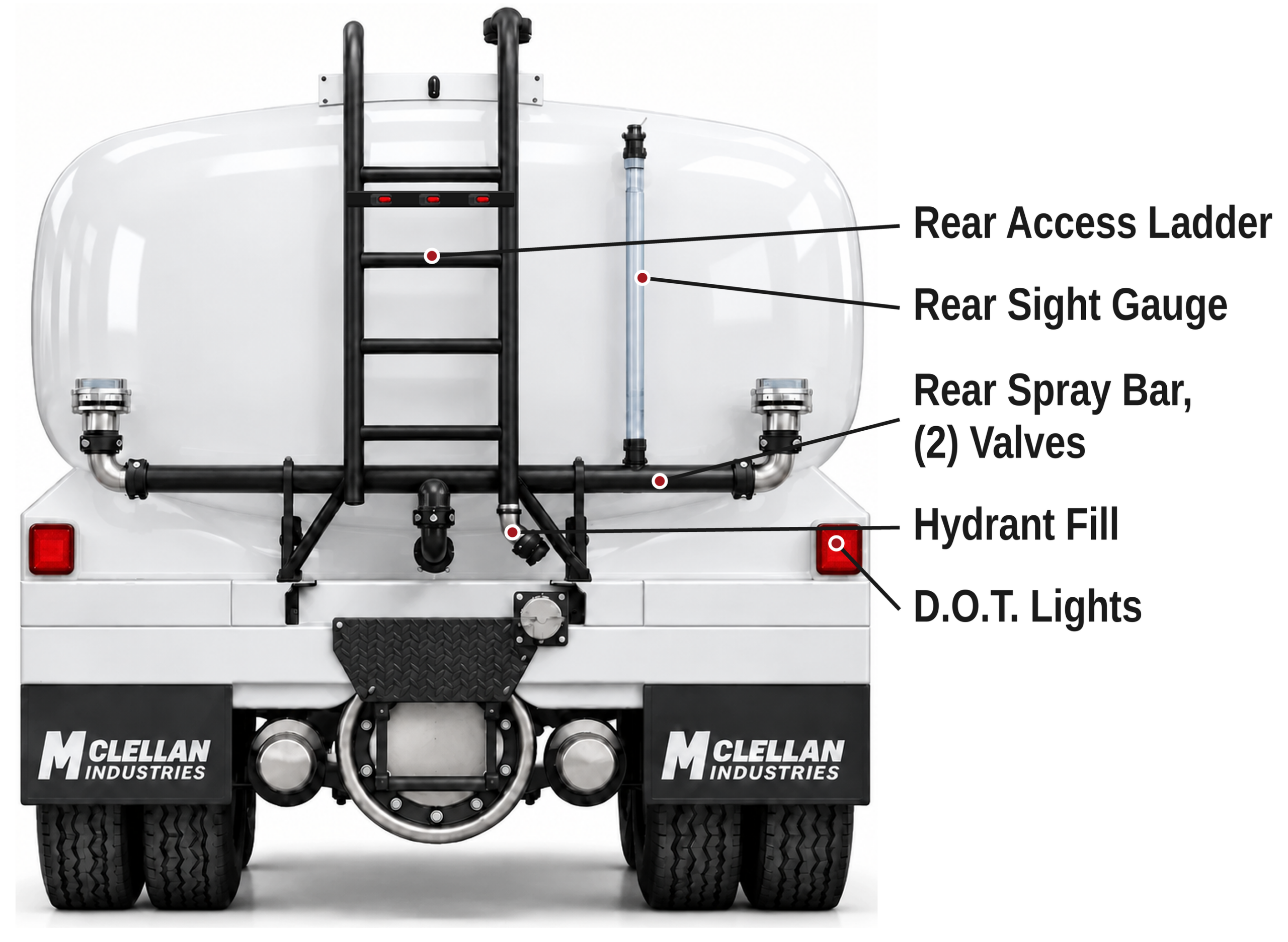

- Access ladder / hydrant fill

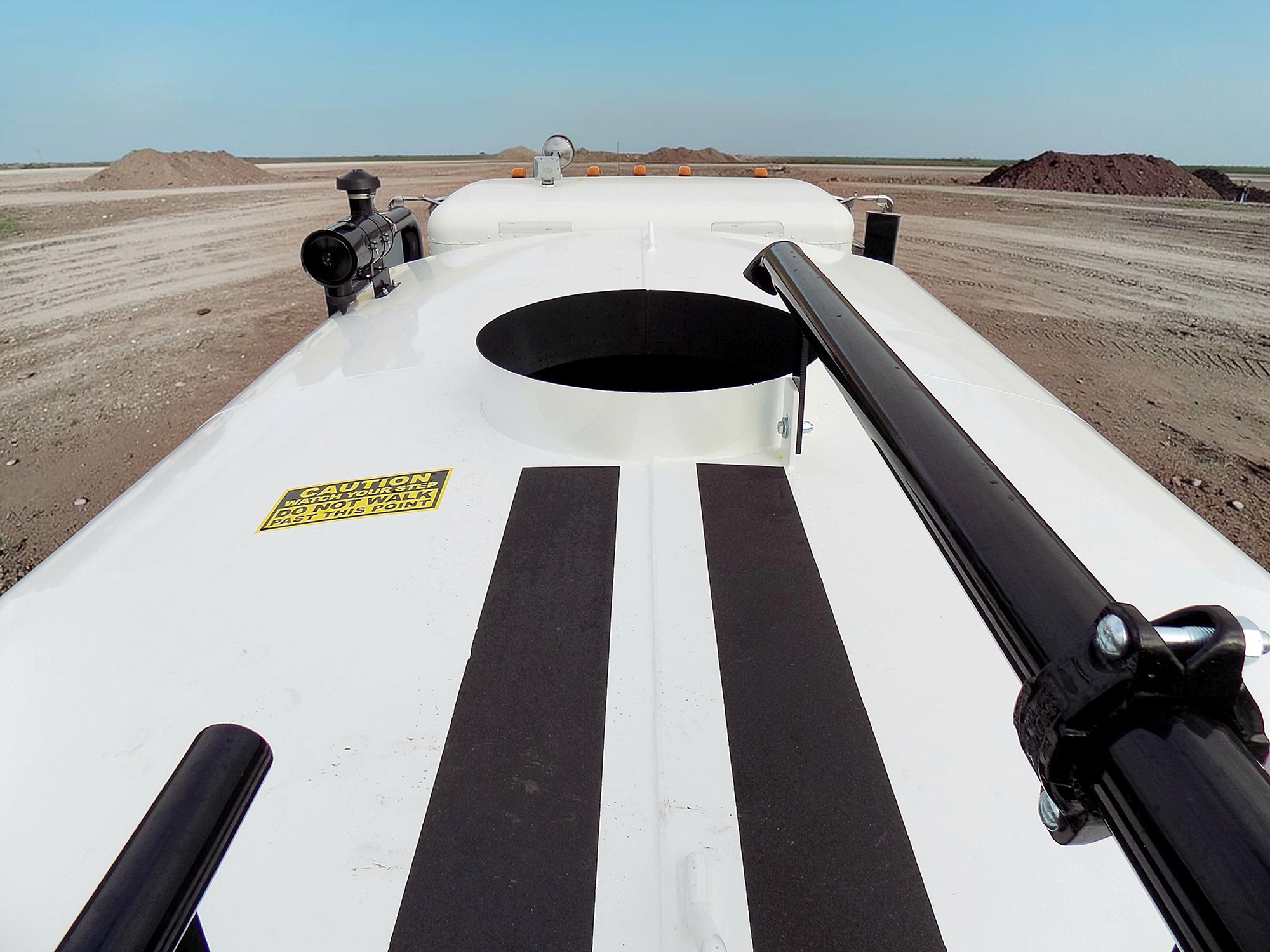

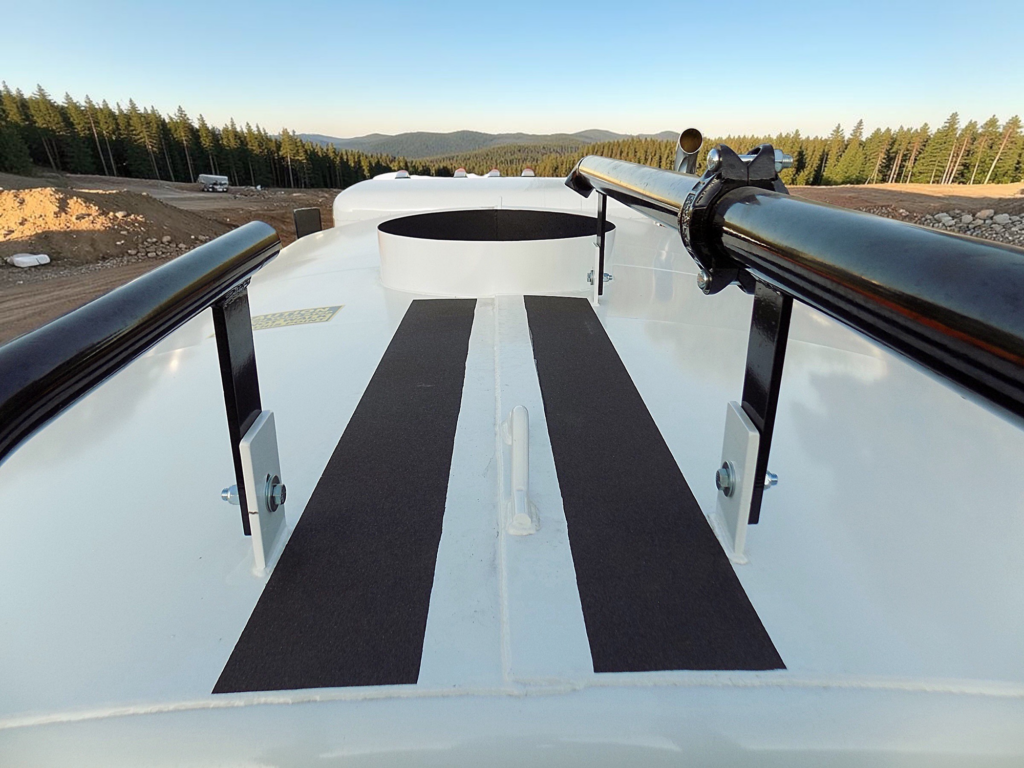

- 24" round fill dome
- Rear bumper 8" pipe
- Safety kit

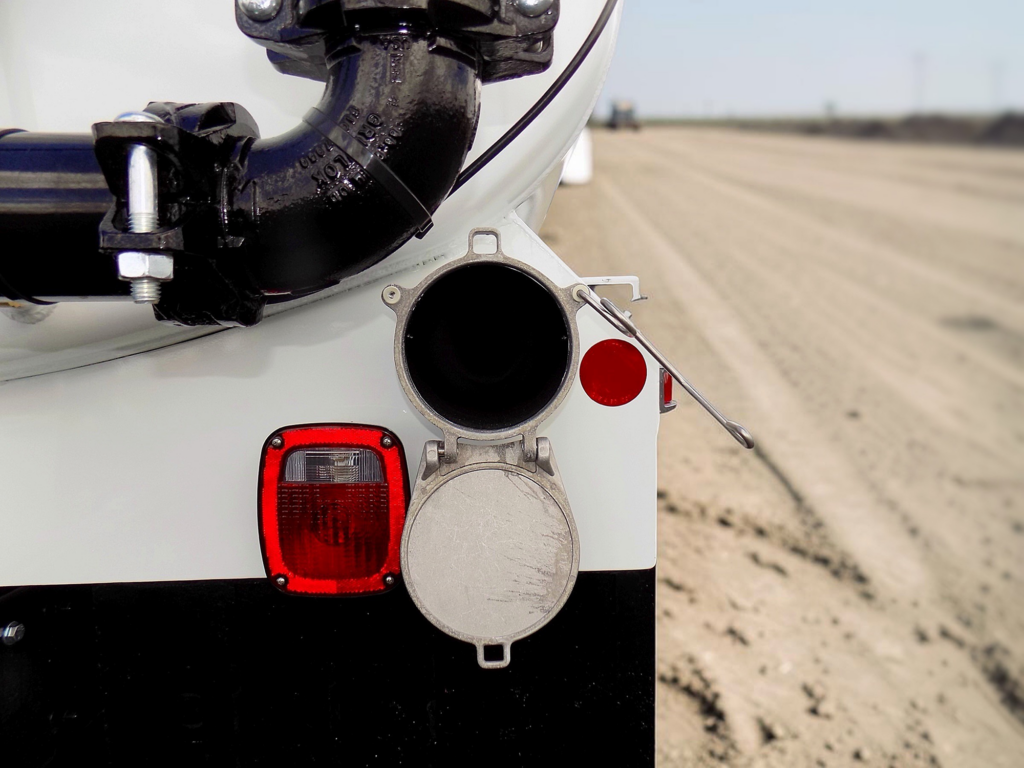

- D.O.T. lights
- Rear sight gauge
- Paint (white, direct-to-metal)
- Manual, spring, or power rewind reels with 50' of 1–2" hose

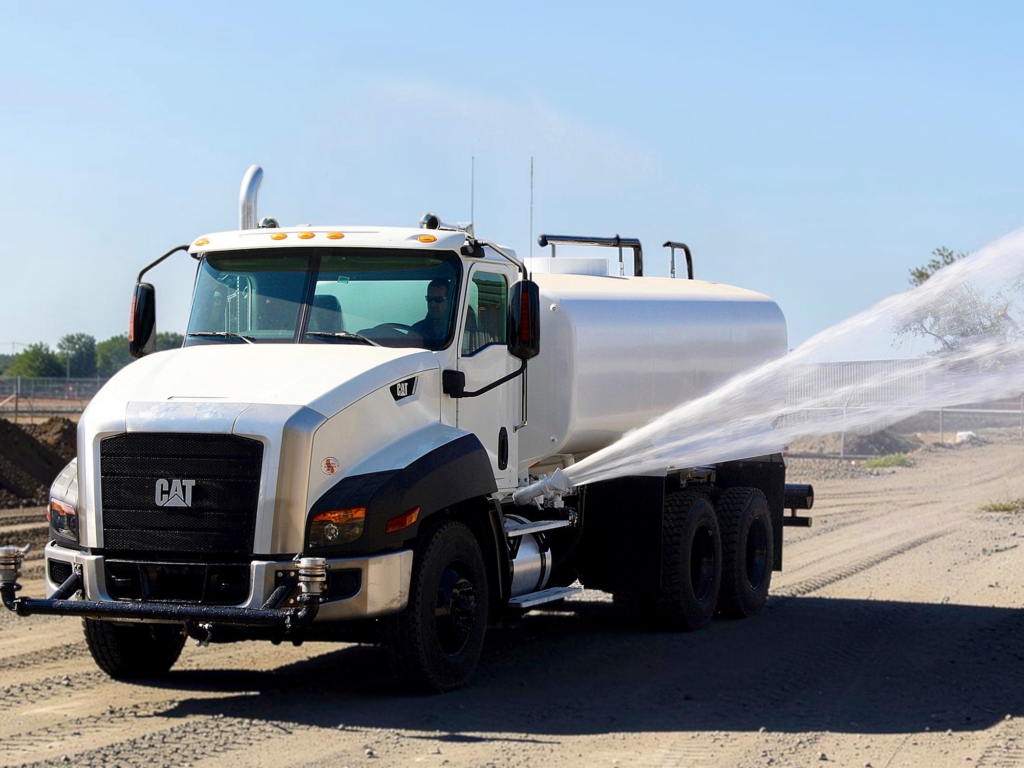

- 2" or 3" pneumatic or manual side spray
- Street flush
- Extra spray valve at rear
- Center valve at rear, top, or bottom
- Self-loading valving, pump, and coupling
- Two 10' hose sections with camlok ends
- Suction screen
- Storage tubes
- 3" foot valve
- Sight gauge (front driver side)
- Air throttle for diesel engine
- Monitor assembly Elkhart
- Additional baffle for fire suppression duty (2000, 3600, 4000 gal tanks)
- Longitudinal baffle
- Internal tank coating
- Tool boxes 18" x 18" x 36"
- PTO driven system
- Hydraulic driven system
- Light bars
- Amber strobe or rotating beacon
- Stainless steel tank
- 12 volt work lights
- Air or manual dump 4–10 inches
READY TO PUT A B-TANK TO WORK?
McLellan can configure your B-Tank Water Truck with the capacity, features, and performance your job demands.
