A-TANK
WATER TRUCK
BRING WATER WHERE YOU NEED IT.
Built for the roughest ground on the job site — dust control, fire suppression, and potable water, hauled by the industry's toughest tank.
BUILT FOR
Dust control, construction, potable water, fire suppression, and more.

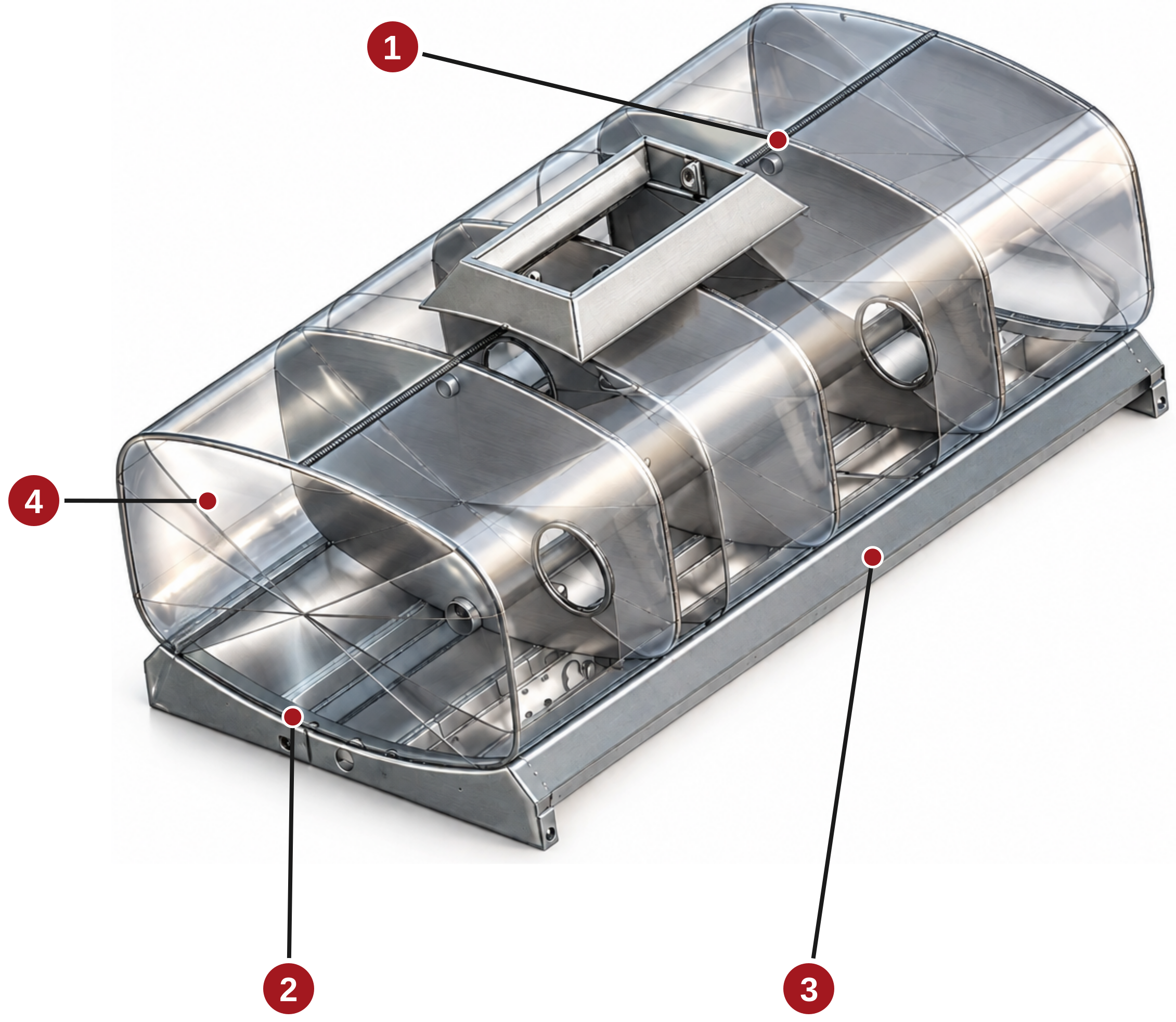

MCLELLAN "A" STYLE TANK CONSTRUCTION
Example configuration — built to your spec.
Single Longitudinal Weld Seam
One seam down the length of the shell instead of several — every weld you remove is a seam that can’t leak or split.
Full Box Bolster
1/4" double-welded box cradles spread the load into the frame, as opposed to a single-weld "L" bolster that stacks it at the saddle — where tanks crack first.
Box Section Sub-Frame
A closed box section holds its shape under load, whereas an open "L" section twists and leaves the tank fighting the chassis — working the seams loose.
Dished & Flanged Heads & Baffles
Increased structural integrity and road safety — prevents accelerated fluid movement when braking.
Choose the A-Tank for McLellan’s flagship, heavy-duty configuration with added structural reinforcement. For operations focused on essential performance and value, the B-Tank offers a leaner, cost-efficient build without compromising McLellan quality.
View the Full Comparison
Configured for the Way You Work
Water Distribution
Side spray, street flush, extra spray valves, and monitor assemblies.
Self-Loading
Fill from a pond, ditch or hydrant without waiting on a water truck. Pump, valving, camlok couplings and suction hose.
Tank & Storage
Stainless shells and internal coatings for potable and corrosive duty, plus storage tubes and toolboxes to keep hose and tools on the truck.
Site Visibility & Safety
Work lights, light bars, sight gauges and more.
- 2,000–6,500 gallon tanks
- Cab controls

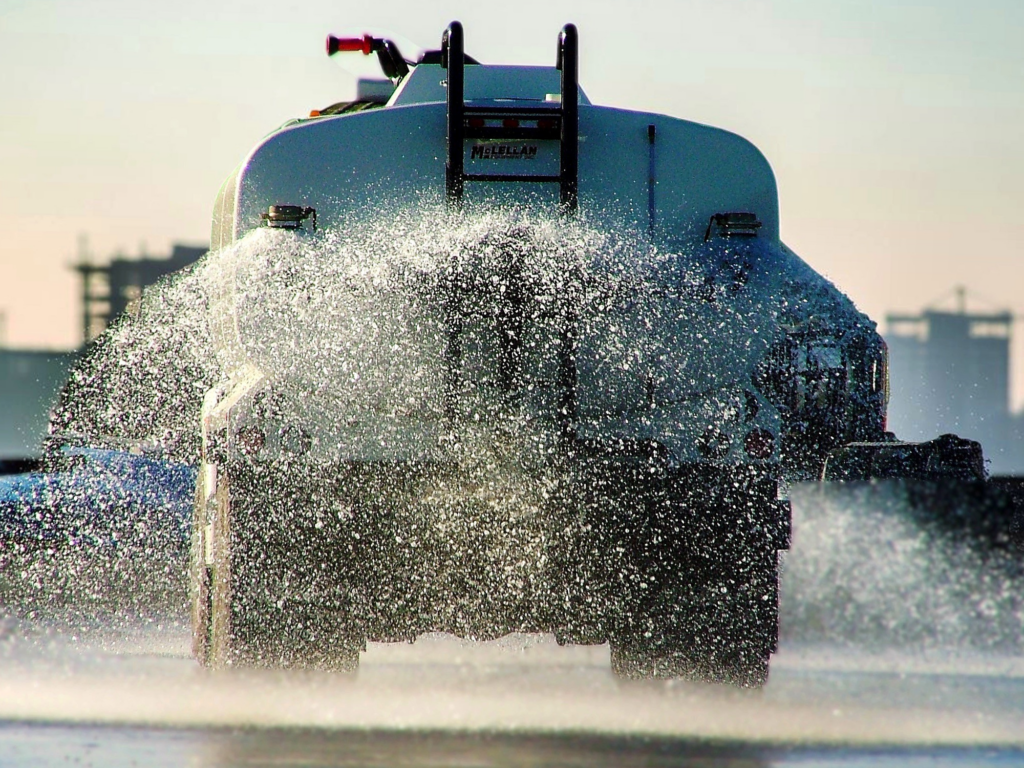

- Four (4) spray valves – two front, two rear
- Diesel Engine, Hydraulic, or Direct Drive PTO
- PermaSlat mounting
- McLellan 4-point off-highway hold down system with elliptical leaf springs
- Dished and flanged heads
- Full fenders
- Access ladder / hydrant fill

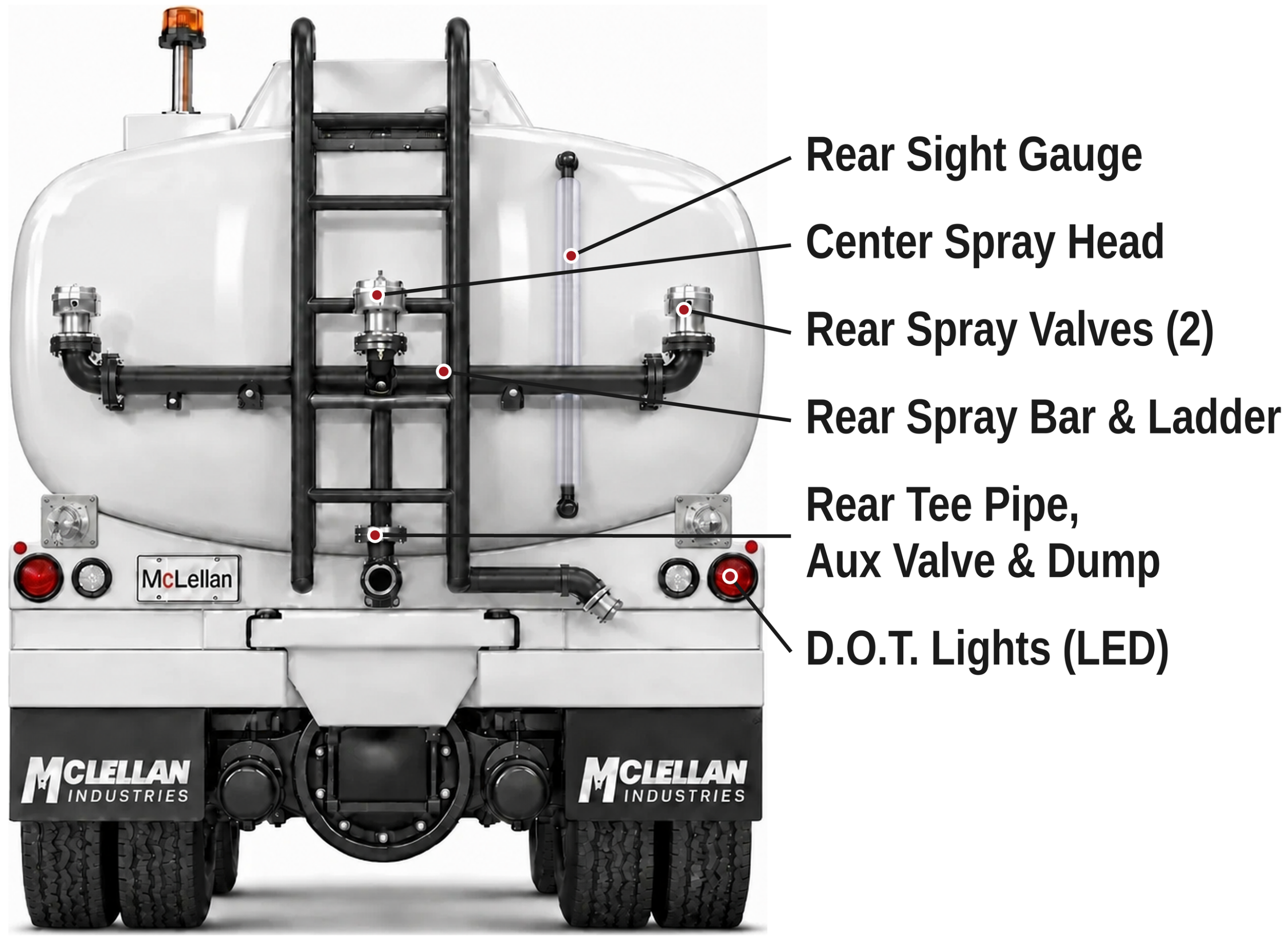

- Rear sight gauge

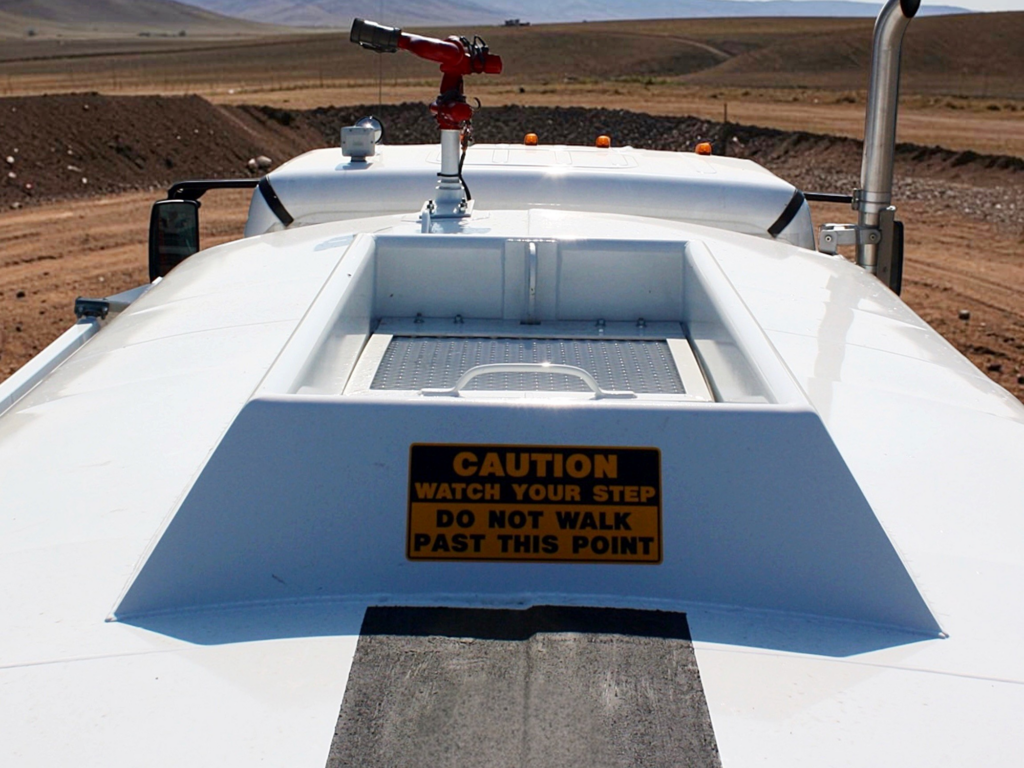

- 24" x 48" fill dome

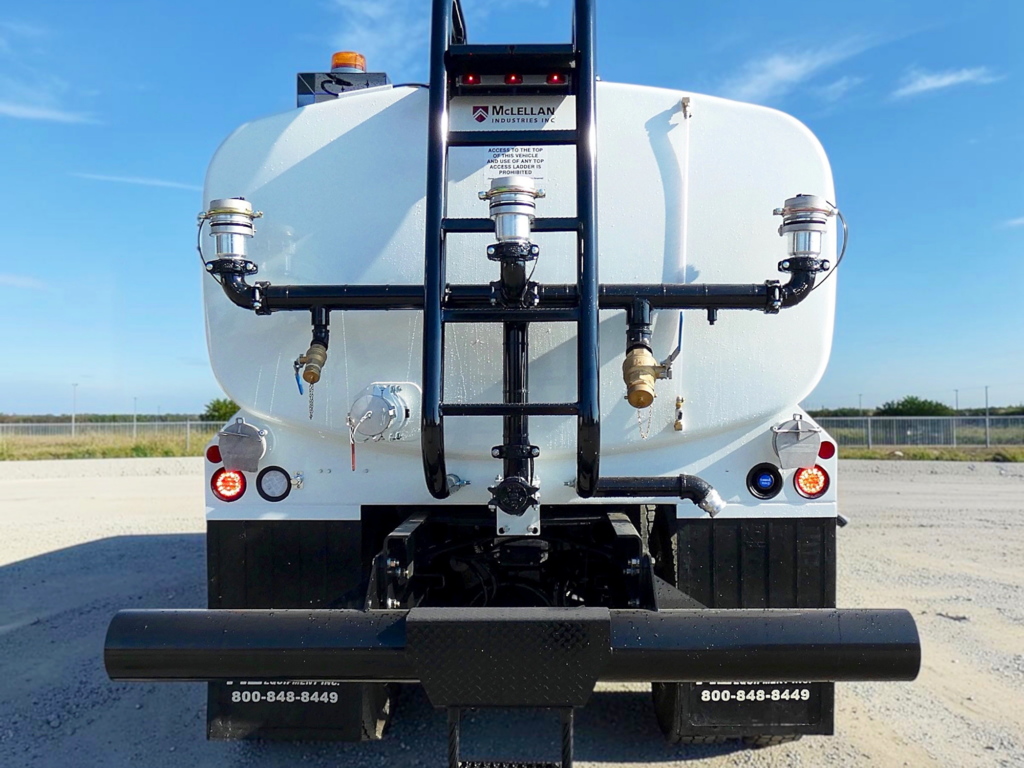

- Rear bumper 8" pipe
- Amber strobe light
- Safety kit
- D.O.T. lights, LED
- Paint (single color)
- Electronic lever throttle (standard on Hatz engine)

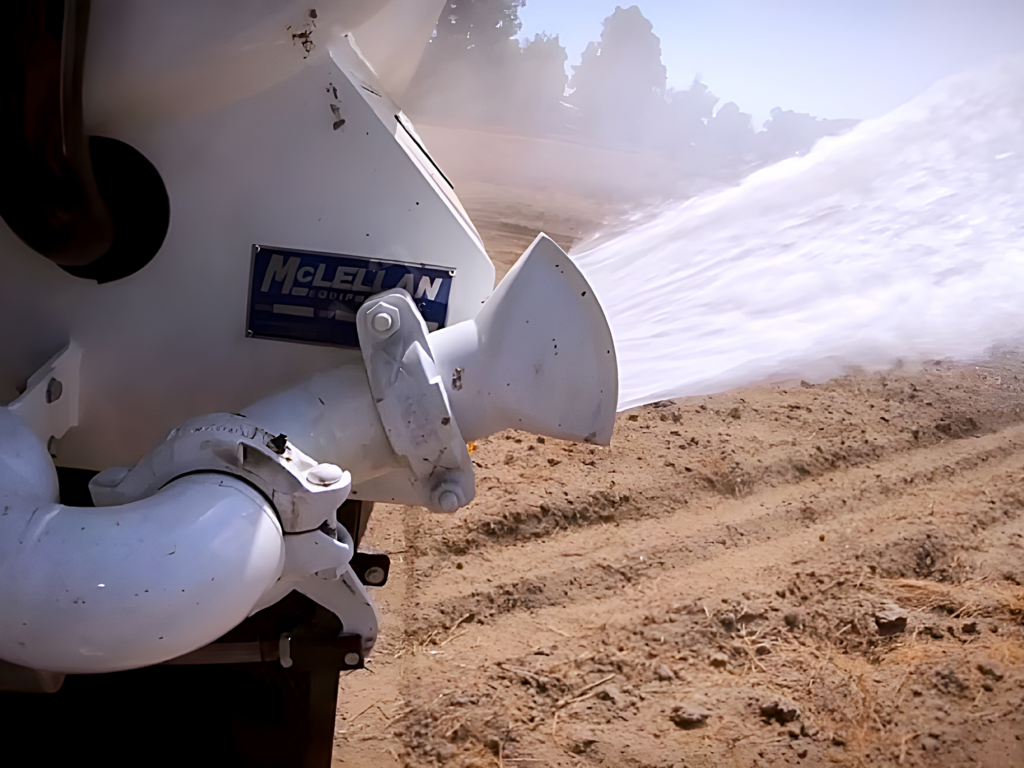

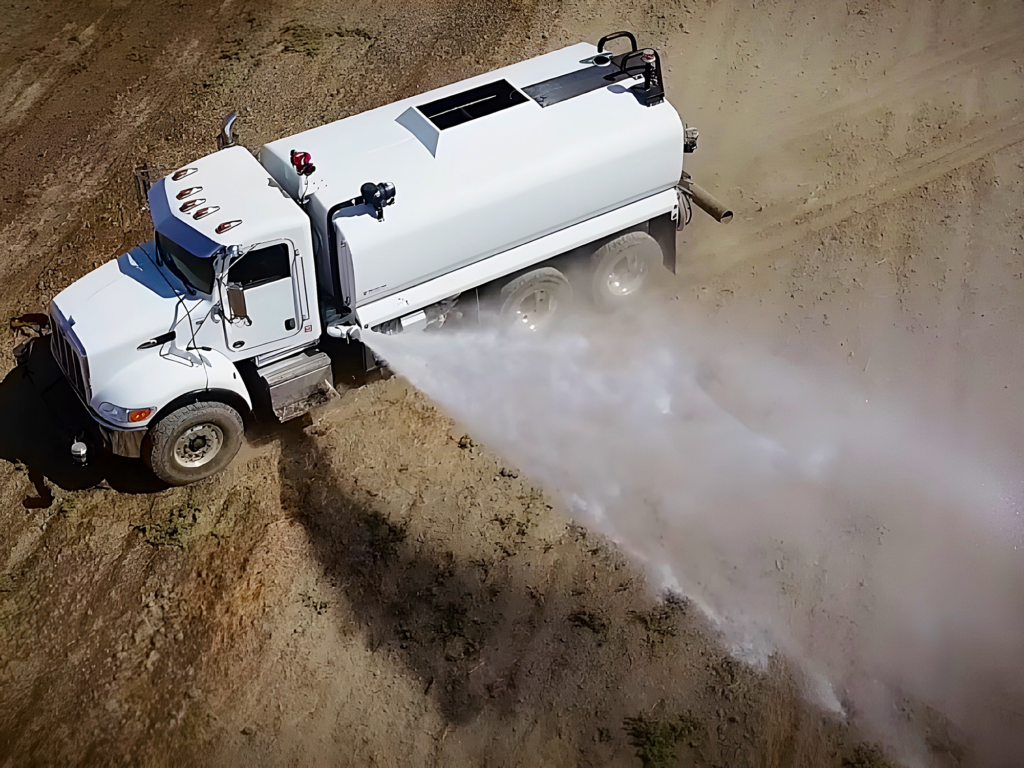

- 2" or 3" side spray (pneumatic or manual)
- Street flush
- Extra spray valve (rear, top, center or bottom)
- Self-loading valving, pump and coupling
- Two 10' hose sections with camlok ends
- Suction screen
- Storage tubes
- 3" foot valve
- Stainless steel tank
- Sight gauge (front driver side)
- Manual, spring, or power rewind reels with 50' of 1–2" hose
- 12 volt work lights
- Air or manual dump 4–10 inches
- Air throttle (Deutz engine)
- Monitor assembly Elkhart
- Longitudinal baffle
- Internal tank coating
- Tool boxes 18" x 18" x 36" (space permitting)
- Light bars
READY TO PUT AN A-TANK TO WORK?
From tank capacity to spray configurations, McLellan can configure an A-Tank Water Truck around the demands of your job site.
