SERVICE TRUCK
SUPER LUBER
BRING THE REFUELING STATION TO THE JOB SITE.
Built to supply an entire job site of heavy machinery — mobile refueling, chassis lubrication, and preventative maintenance, wherever the fleet is working.
BUILT FOR
Keeping heavy equipment fueled, lubricated, and maintained without leaving the job site.
MCLELLAN SUPER LUBER CONFIGURATION
Dual Product Compartments
Dedicated compartments for fuel, oil, grease, and waste oil keep every fluid organized, contained, and ready to deploy.
Hydraulic-Driven Pumps & Compressor
Runs off the truck's hydraulic system for reliable fuel, air, and grease delivery in the field.
Heavy-Duty Rewind Hose Reels
Hydraulic rewind reels for grease, fuel, and diesel keep hoses protected and job-site ready.
Sight Gauges & Gauge Panel
Oil tank sight gauges and a full gauge panel give techs a clear read on every fluid level at a glance.
- Hydraulically powered McLellan reels help prevent injury and strain from pulling hose.
- Specifications engineered by McLellan to your needs help ensure proper vehicle maintenance.

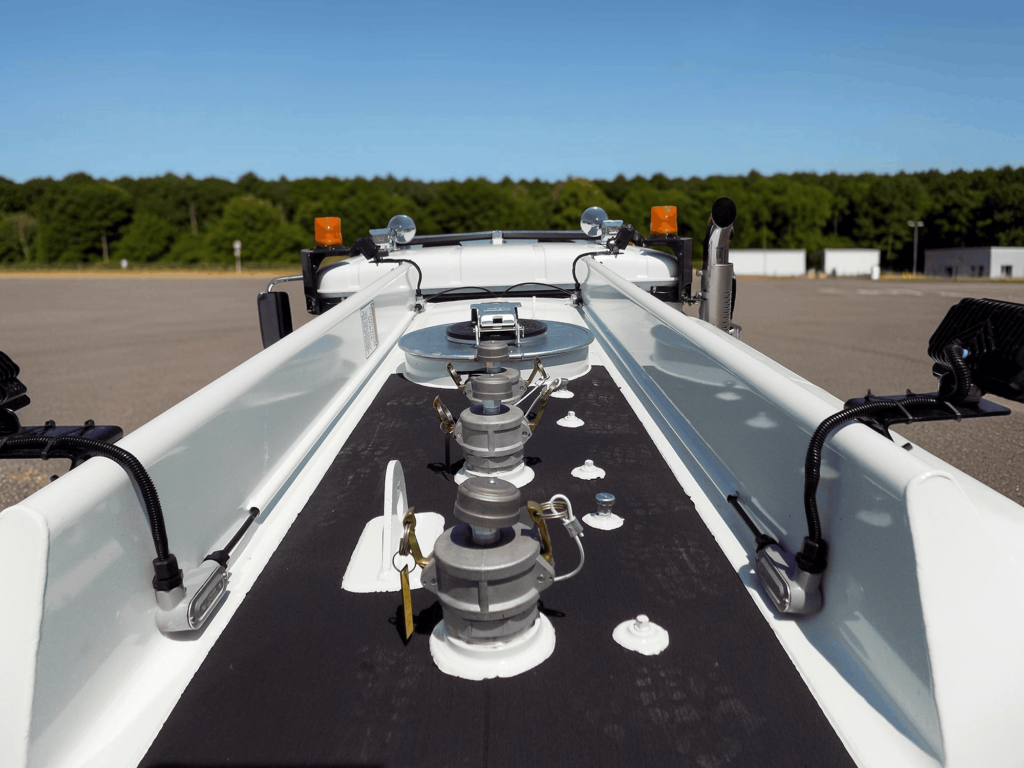

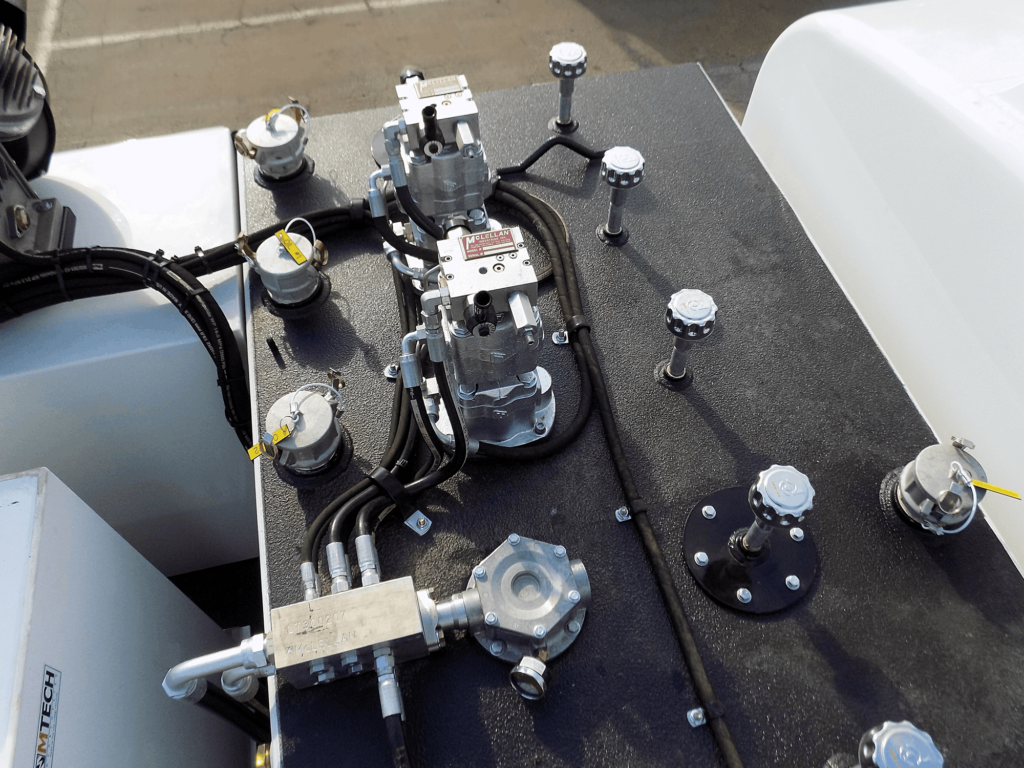

Pump and compressor deck, gauge/valve manifold, rear diamond-plated door.

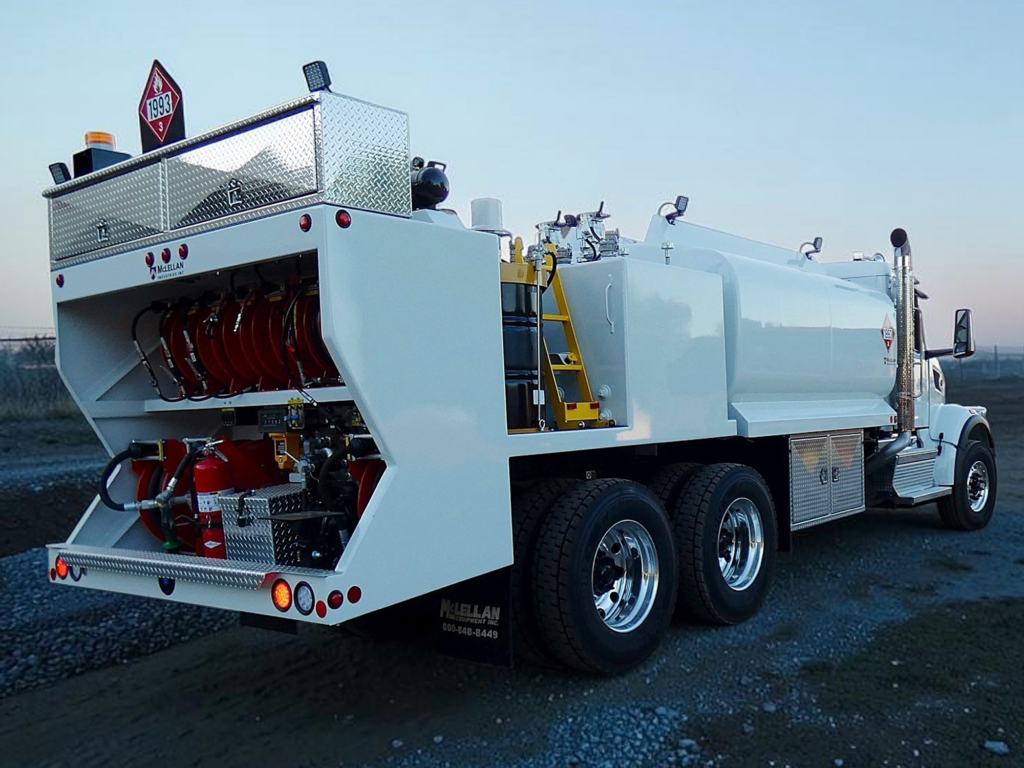

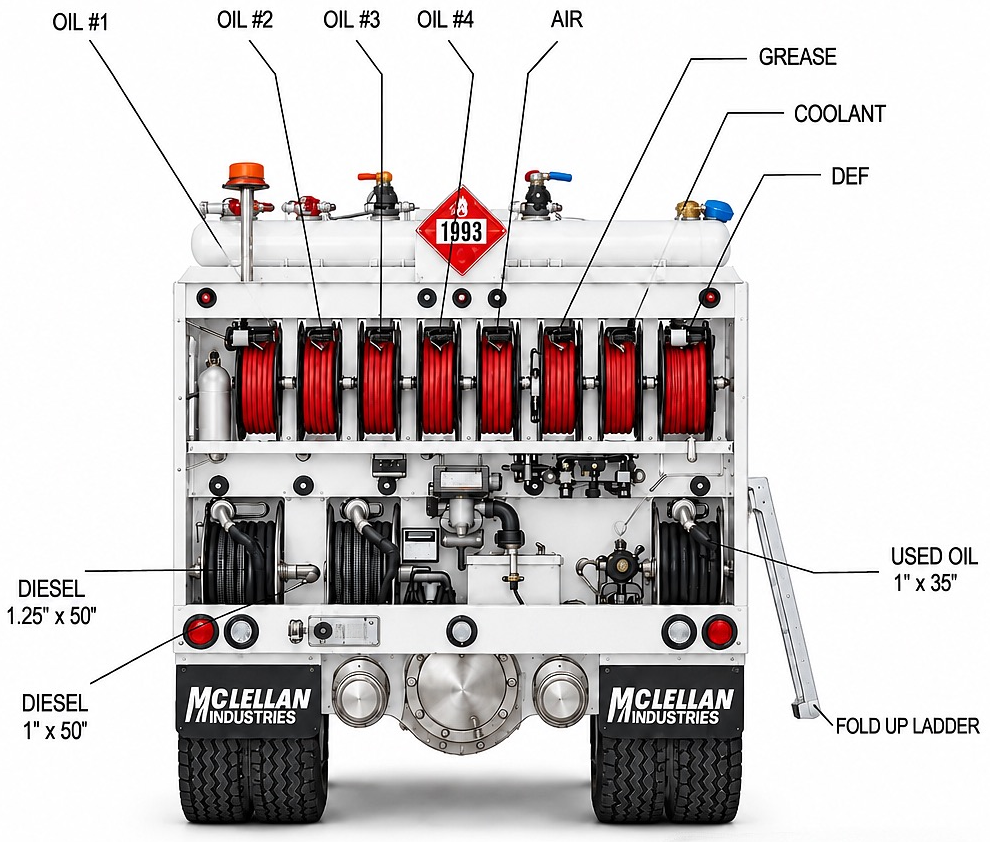

Rear reel bank: hydraulic-rewind hose reels and meter/gauge panel.
- Super Luber, 2000–2500 gallon capacity
- 2000–2500 gallon fuel tank, single or multi compartment
- Cross tank: 40" deck, six (6) 100-gallon oil tanks, 90-gallon hydraulic reservoir
- Cab controls
- Four (4) McLellan heavy-duty hydraulic product pumps
- McLellan heavy-duty hose reels
- 75:1 air grease pump and reel
- Air and water systems
- Hydraulic-driven 1.5" fuel pump @ 50 GPM

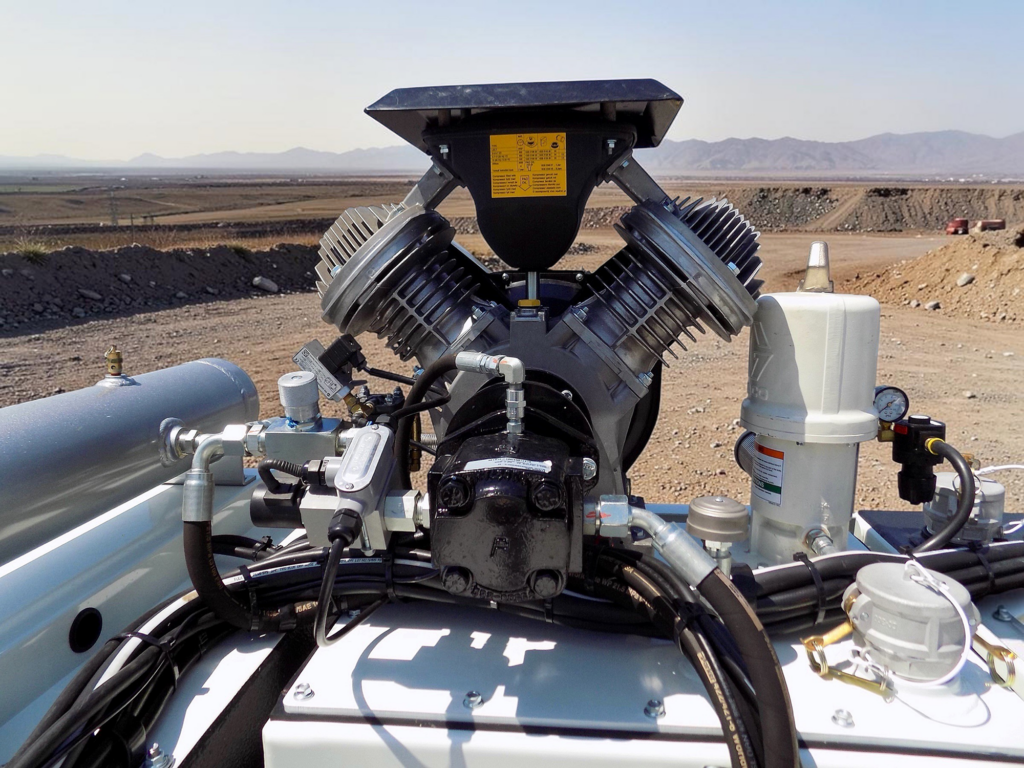

- Hydraulic-driven 30 CFM air compressor
- Two (2) 54"x32"x24" tool/filter boxes (polished aluminum diamond plate)
- Fuel meter, 40–60 GPM
- Six (6) LED work lights
- D.O.T. LED stop, turn & brake lights
- Amber strobe light, driver's side rear
- Waste oil system – loads and unloads
- Used oil filter box
- Hydraulic rewind grease reel w/ 90' hose
- Oil tank sight gauges
- One-color paint
- Compartment sizes available in fuel tank
- D.O.T. 406 spec available
- DEF system (custom tank size) w/ pump, hose reel & nozzle
- Heavy- or medium-duty air pumps
- 70–120 GPM diesel meter
- 5–20 GPM gas meter
- In-line fuel filter
- Roll-up or swing-up doors
- Wheel skirts
- LED lighting package
- Bottom load system
- Vapor recovery system, Phase 1 & 2 (inquire)
- High-pressure wash system, incl. tank
- Compressor box combo, 35"x35"x24"
- Aluminum box, 60"x32"x24"
- Extra product pump and reel
- Hydraulic rewind product reels
- Digital end-of-hose oil meters
- Hydraulic-driven grease pump
- 2" diesel pump (in lieu of 1.5")
- Fuelcom or Wiggins fast-fuel nozzle
- Grease barrel/cover w/ heating coils
WHY CHOOSE A MCLELLAN LUBE TRUCK?
Reduce downtime by bringing the service station into the field
Prevent injury and strain from pulling hose with hydraulically powered McLellan reels.
Insure proper vehicle maintenance with the right specifications customized by McLellan's engineers and designed to your needs.
READY TO PUT A SUPER LUBER TO WORK?
When the job demands maximum capacity and capability, McLellan can configure your Super Luber to keep entire fleets fueled, serviced, and moving wherever the work takes you.
