SERVICE TRUCK
LUBER LIGHT
ESSENTIAL FUEL & LUBE SERVICE, TRUCK-MOUNTED.
A compact, truck-mounted fuel and lube unit — just the essentials your crew needs to keep equipment serviced, scaled to the route you run.
BUILT FOR
Bring full-service capability into tighter spaces. The Luber Light combines mobile refueling, lubrication, air, grease, and preventative maintenance in a compact footprint built for demanding job sites.

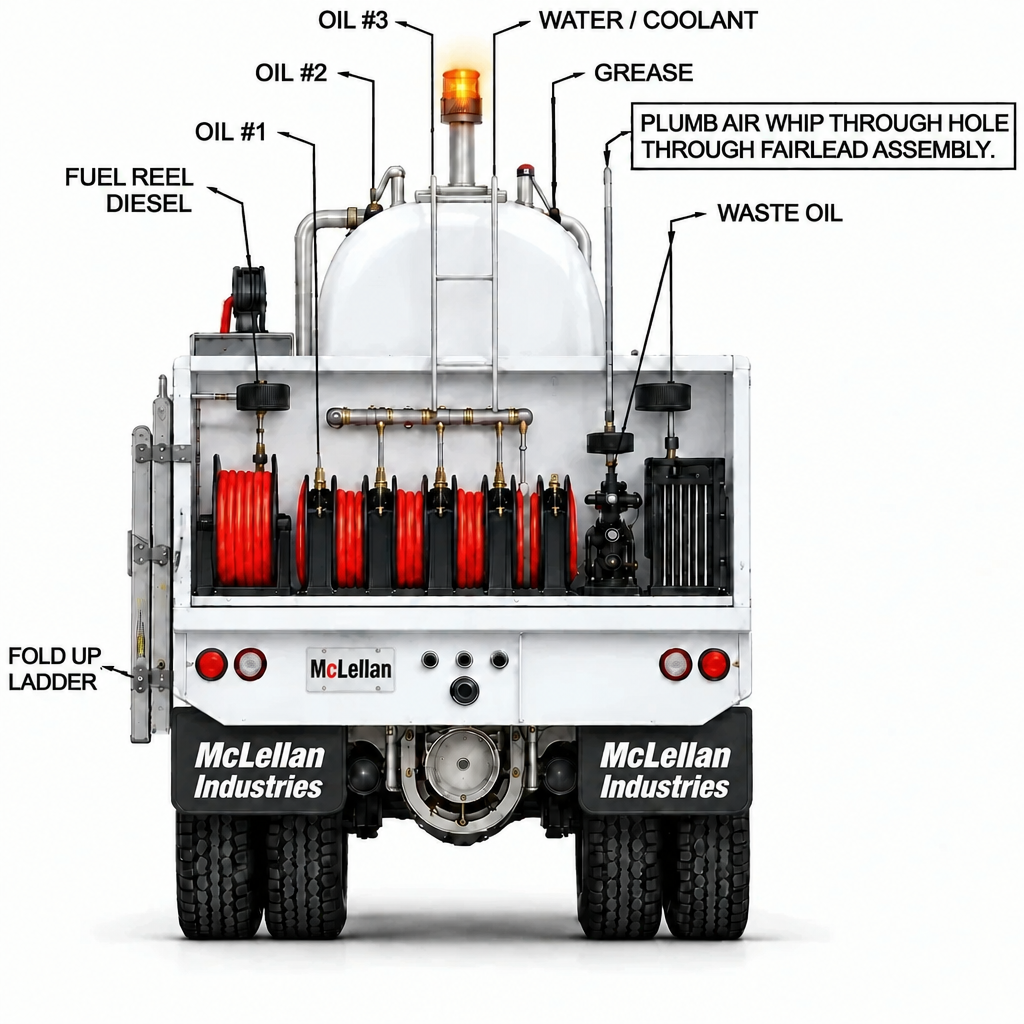

MCLELLAN LUBER LIGHT CONFIGURATION
Example configuration — fully customizable to your spec.

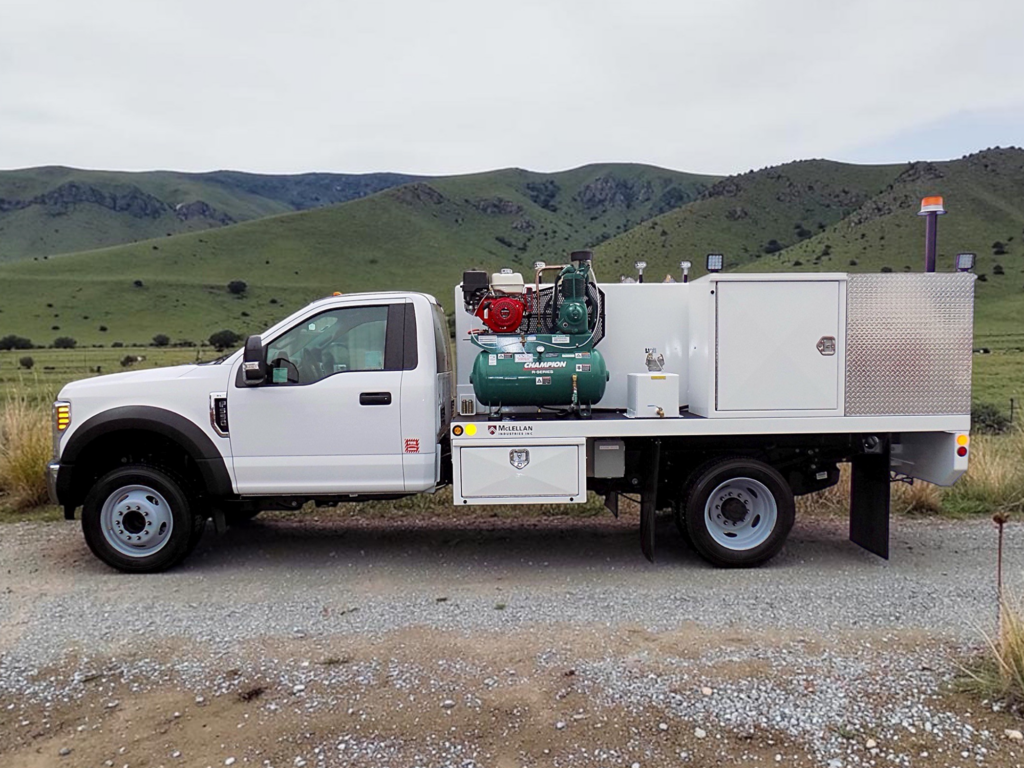

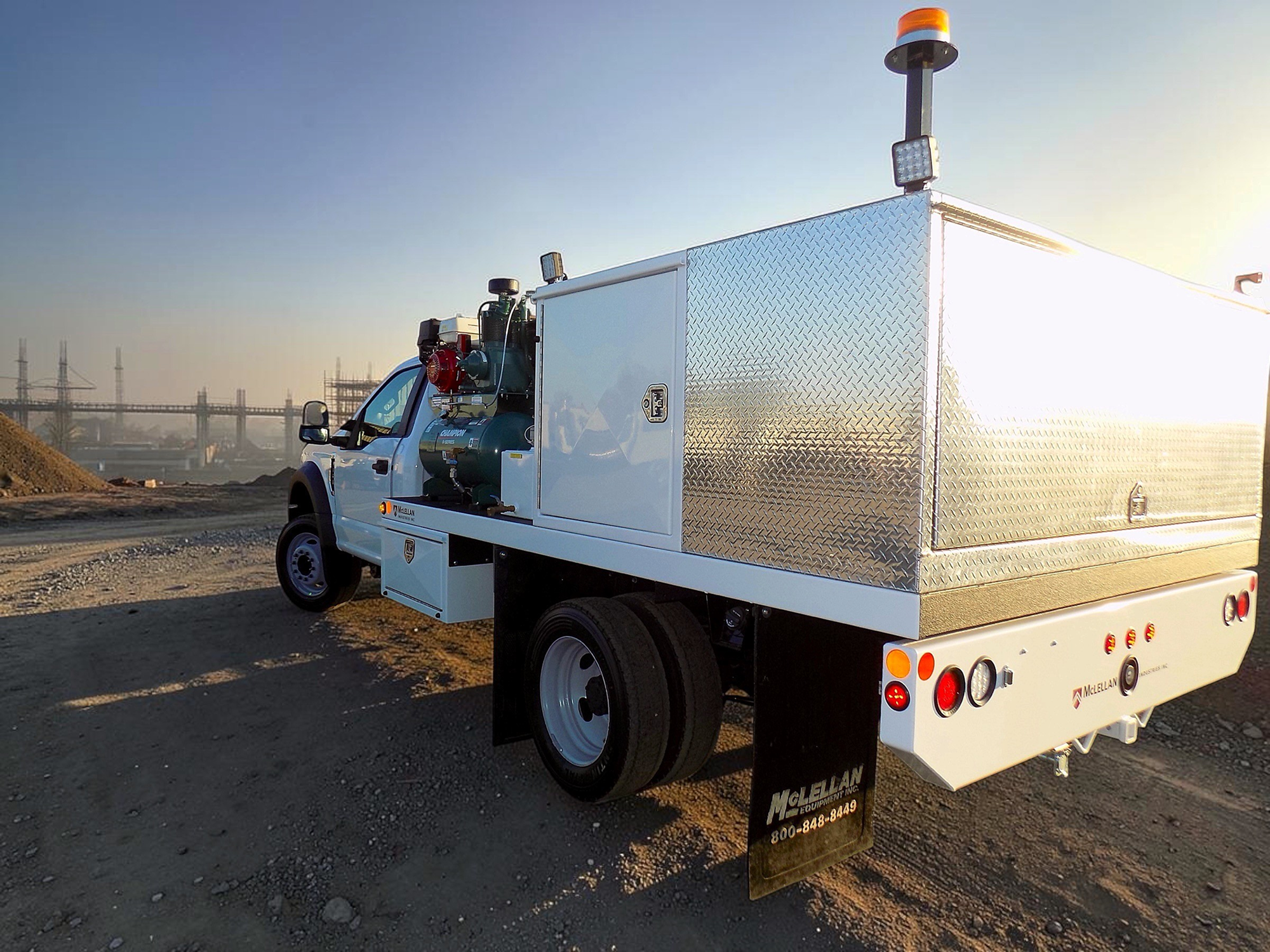

Chassis-Mounted Service Body
Chassis-mounted lube/service body sized for tighter routes and smaller crews — no trailer to tow or unhook.
Core Product Compartments

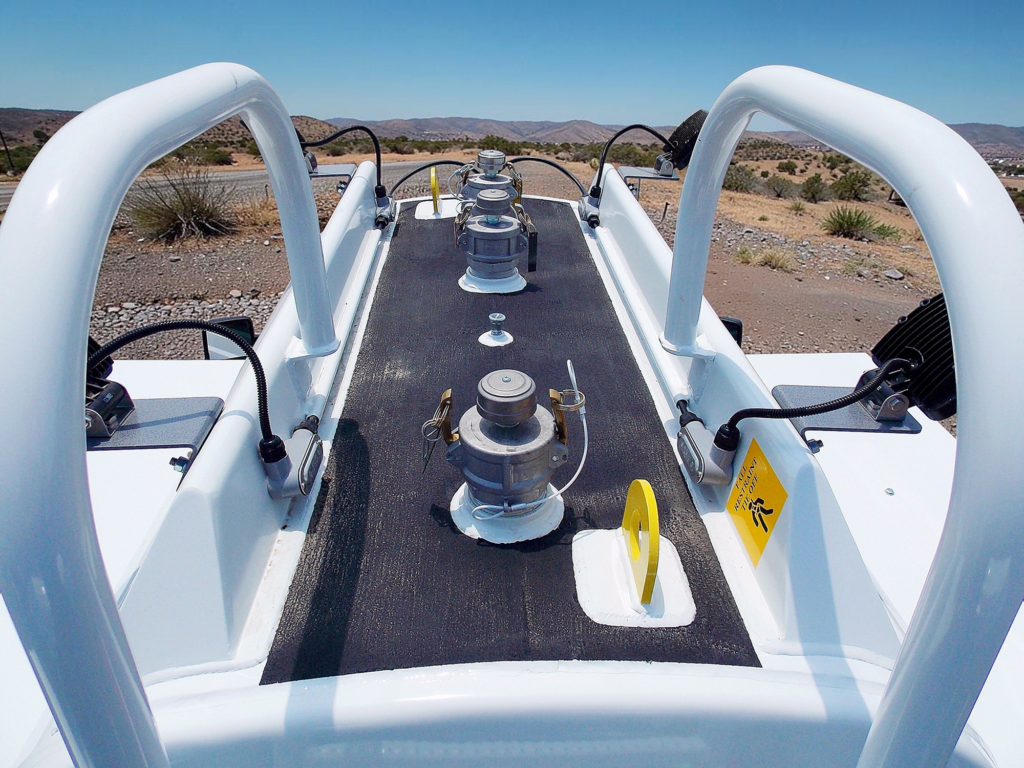

A multi-compartment product tank with used oil fittings keeps oils and waste separated and ready to deploy.

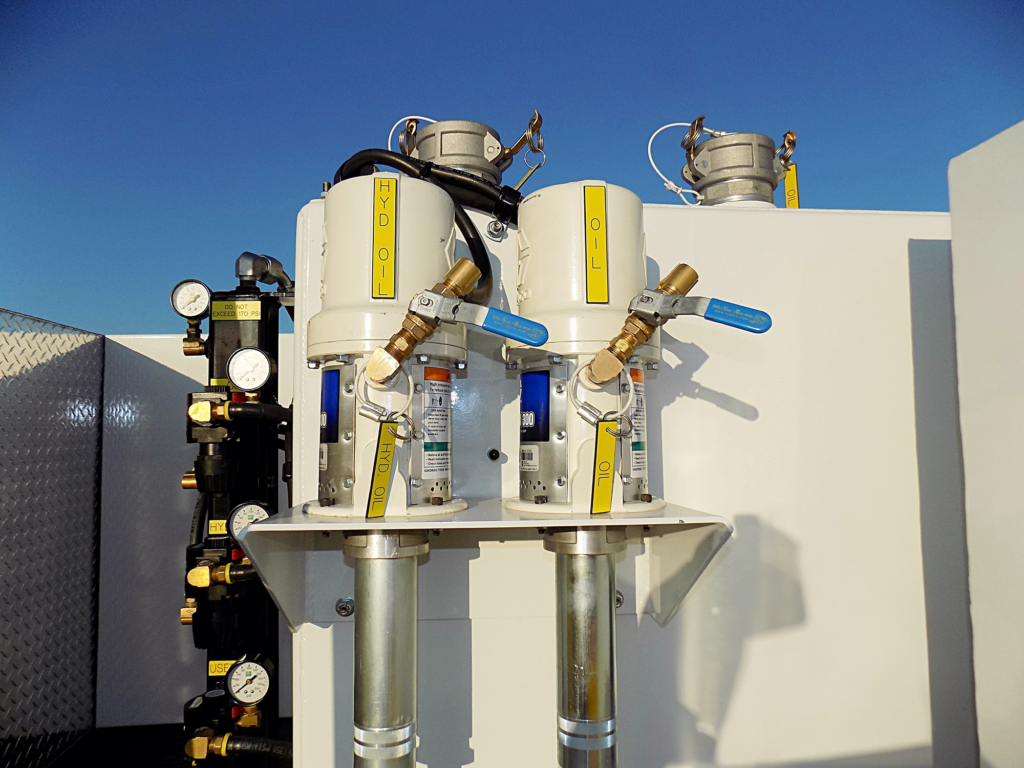

Air-Driven Product Pumps
Air-driven oil pumps on an Econo air manifold run the product systems. A full hydraulic system is available when you want it.

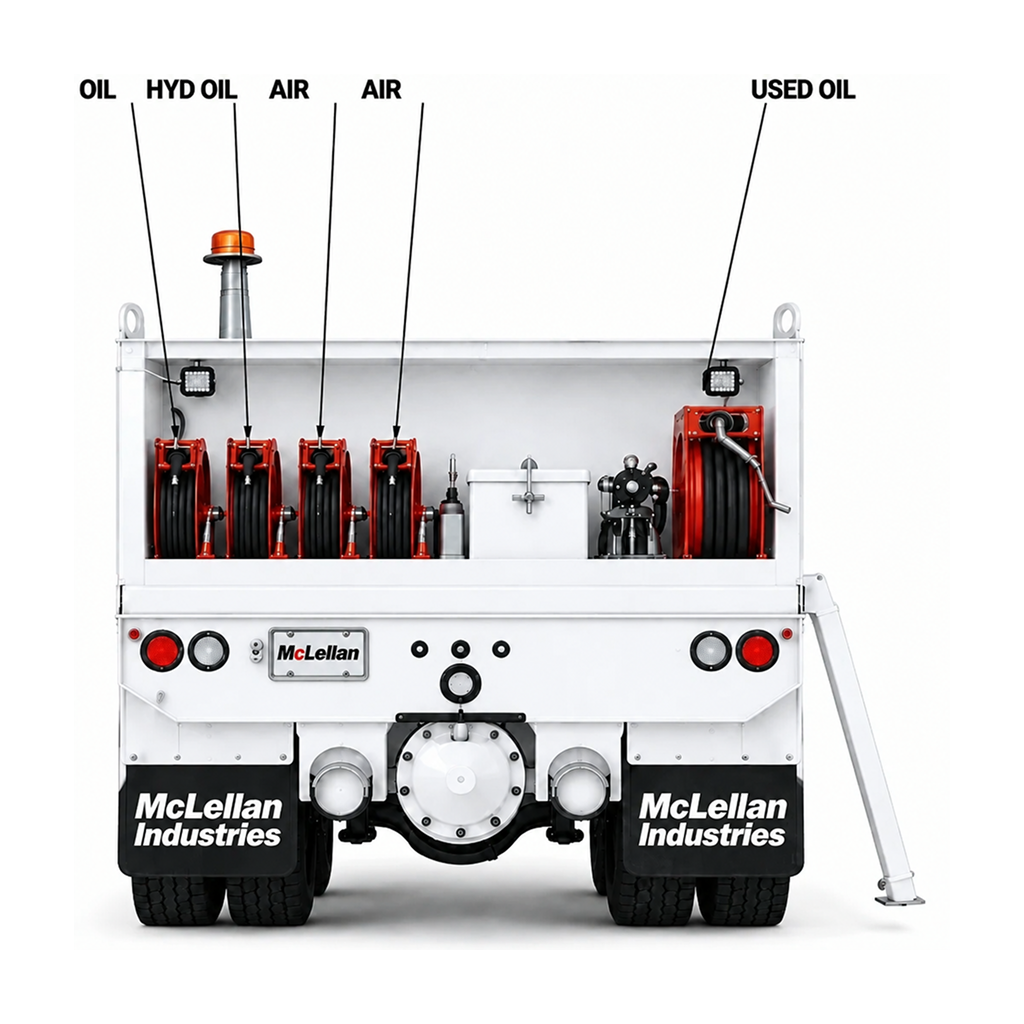

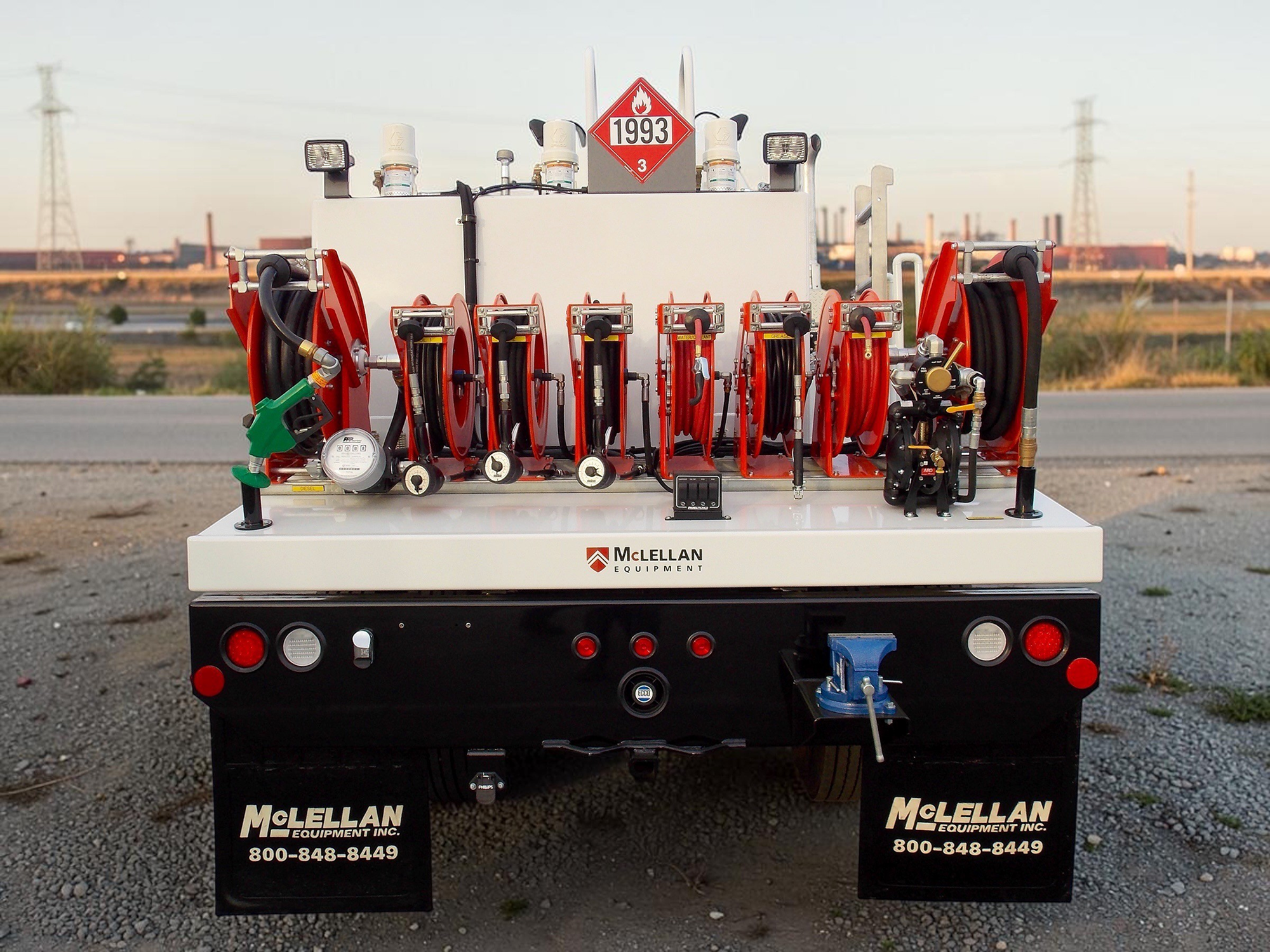

McLellan Spring Rewind Reels
Spring rewind reels on oil, diesel, air and used oil keep hose controlled and site-ready.
The McLellan Advantage
- ✓ Scales to the route you run — tank size, chassis and reel count matched to your equipment.
- ✓ A no-frills build gets fuel and lube to the field at a price scaled to the job, with the same McLellan reel and tank quality as the rest of the lube fleet.
- 475–1,000 gal. fuel tank, 1–3 compartments, 16" D.O.T. lid
- 210–500 gal. product tank, 3–5 compartments, 70–75 gal. heads
- Econo or beavertail deck, 96" x 144"–172"
- Reel compartment, 96" x 39" x 36", alum. D/P
- (2)–(4) oil systems – air-driven pump, 1/2" x 50' spring reel
- 1" diesel system – air-driven pump, 1" x 50' reel & nozzle
- Used oil retrieval & dump – 1" x 35' reel

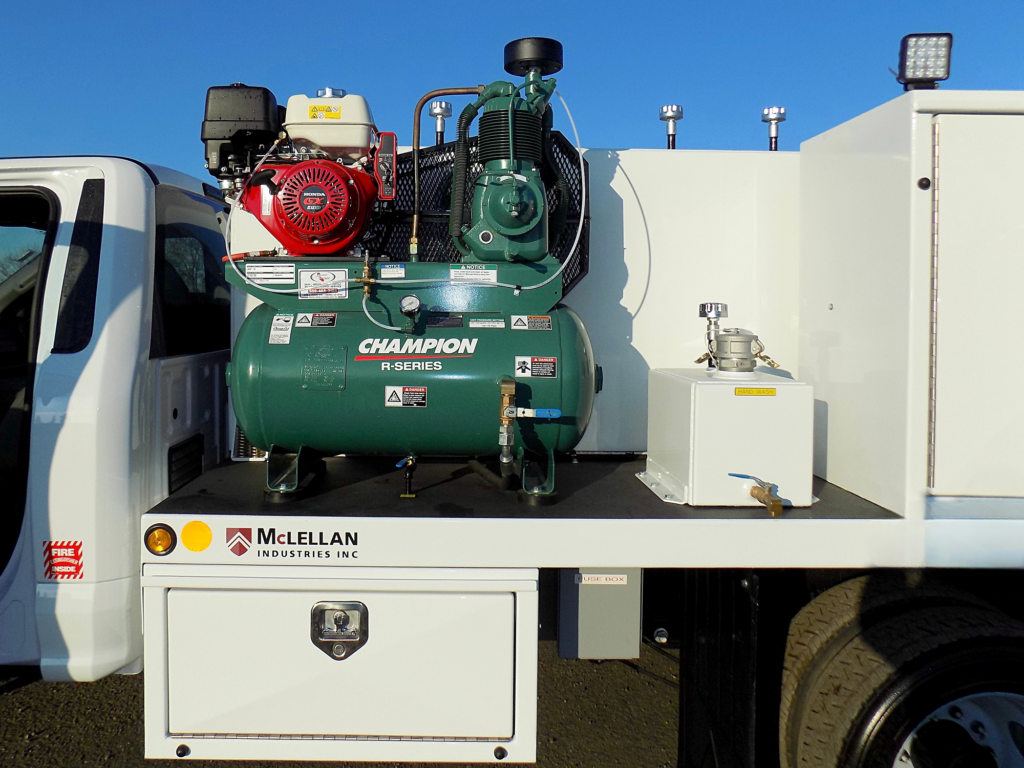

- Air delivery – 23–30 CFM, 3/8" x 50' reel & chuck
- Cab control panel, hot shift PTO, filter drain box
- (6) LED work lights, amber strobe, D.O.T. LED lights
- Western bumper, access ladders, safety kit
- Hydraulic system – 40 gal. reservoir w/ cooler
- Gasoline system – 100 gal. tank, meter & 10-micron filter
- DEF system – 50 gal. poly tank, SS air pump
- Grease system – pump & spring reel
- Diesel meters (981 round) – red & clear
- 10 gal. stainless water tank, gravity feed
- 30 gal. air tank
- Drawer set – (5) 3" drawers, 30" x 16"
- 2" receiver hitch, bed liner, PermaSlat
- Custom paint / decal package
READY TO PUT A LUBER LIGHT TO WORK?
When the job demands mobility without sacrificing capability, McLellan can configure your Luber Light to keep equipment serviced and moving wherever the work takes you.
