MINE-SITE
WATER TRUCK
BRING WATER WHERE YOU NEED IT.
Built for the biggest jobs in the pit — massive-capacity dust control, fire suppression, and potable water, hauled by the industry's toughest tank.
BUILT FOR

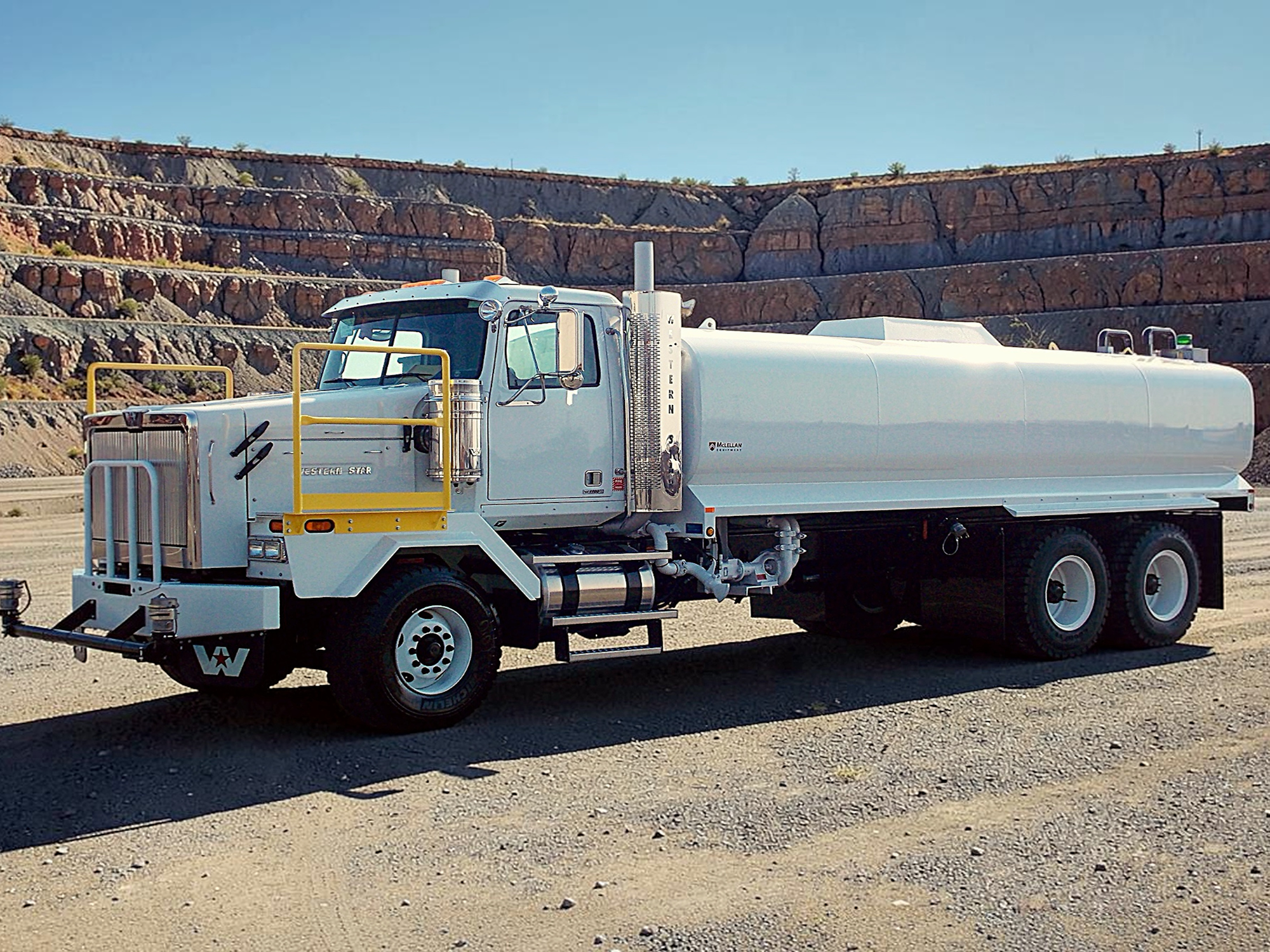

Move more water with fewer trips. With capacities up to 10,000 gallons, the Mine-Site Water Truck is built for large-scale dust control and water support across mines, quarries, and heavy construction sites.
MCLELLAN "A" STYLE TANK CONSTRUCTION
Single Longitudinal Weld Seam
One seam down the length of the shell instead of several — every weld you remove is a seam that can’t leak or split.
Full Box Bolster
1/4" double-welded box cradles spread the load into the frame, as opposed to a single-weld "L" bolster that stacks it at the saddle — where tanks crack first.
Box Section Sub-Frame
A closed box section holds its shape under load, whereas an open "L" section twists and leaves the tank fighting the chassis — working the seams loose.
Dished & Flanged Heads & Baffles
Increased structural integrity and road safety — prevents accelerated fluid movement when braking.

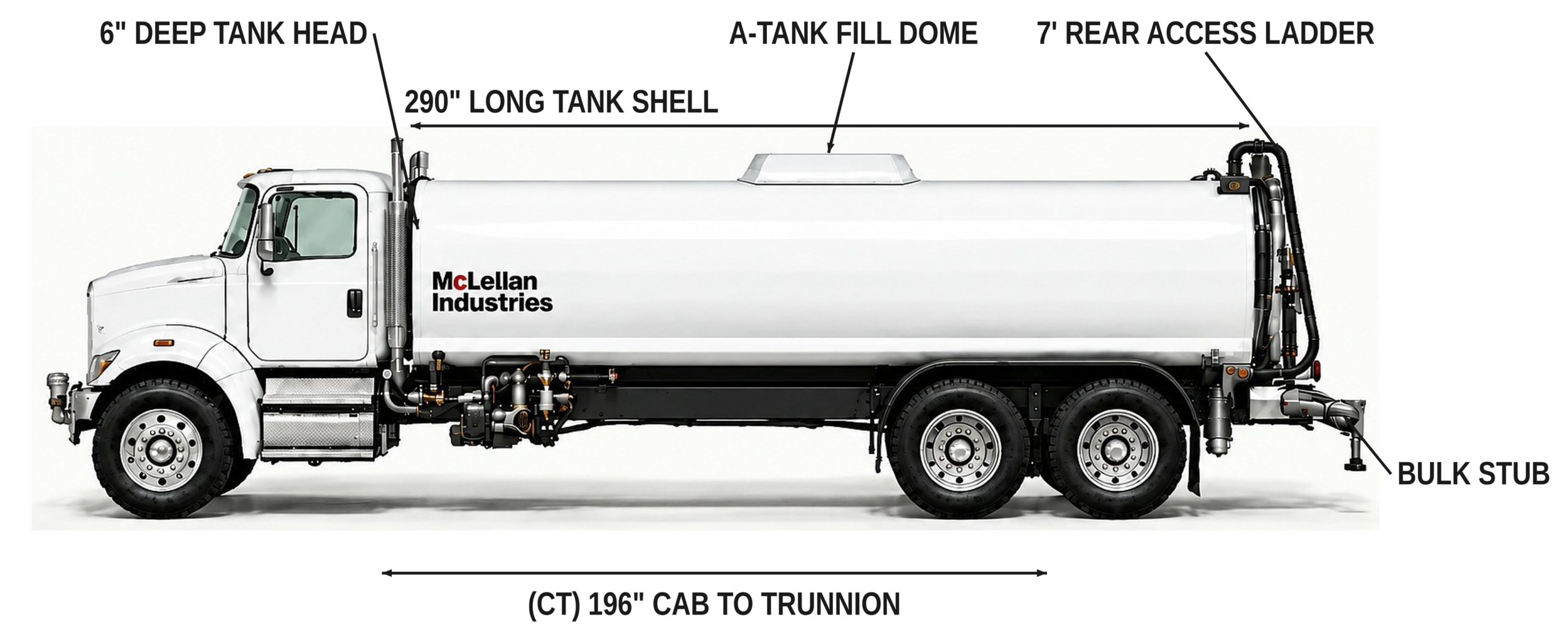

Example dimensions — configured to your spec.
- 4,000–10,000 gallon tank
- 5-valve cab controls; hot shift PTO

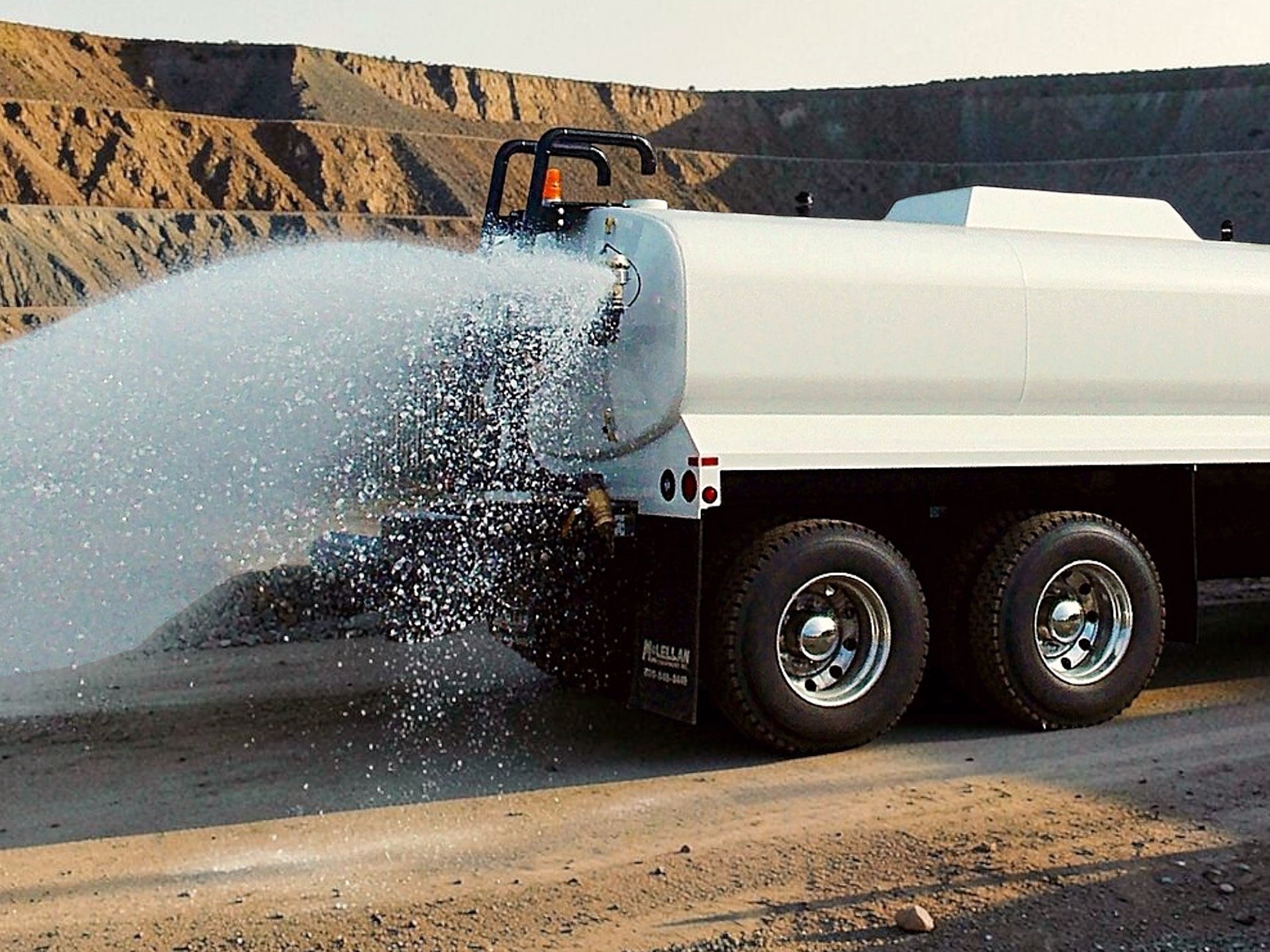

- Four (4) spray valves – two front, two rear
- Diesel Engine, Hydraulic, or Direct Drive PTO
- PermaSlat mounting
- McLellan 4-point off-highway hold down system with elliptical leaf springs
- Dished & flanged heads & equally spaced baffles
- Full fenders
- Rear access ladder & hydrant fill

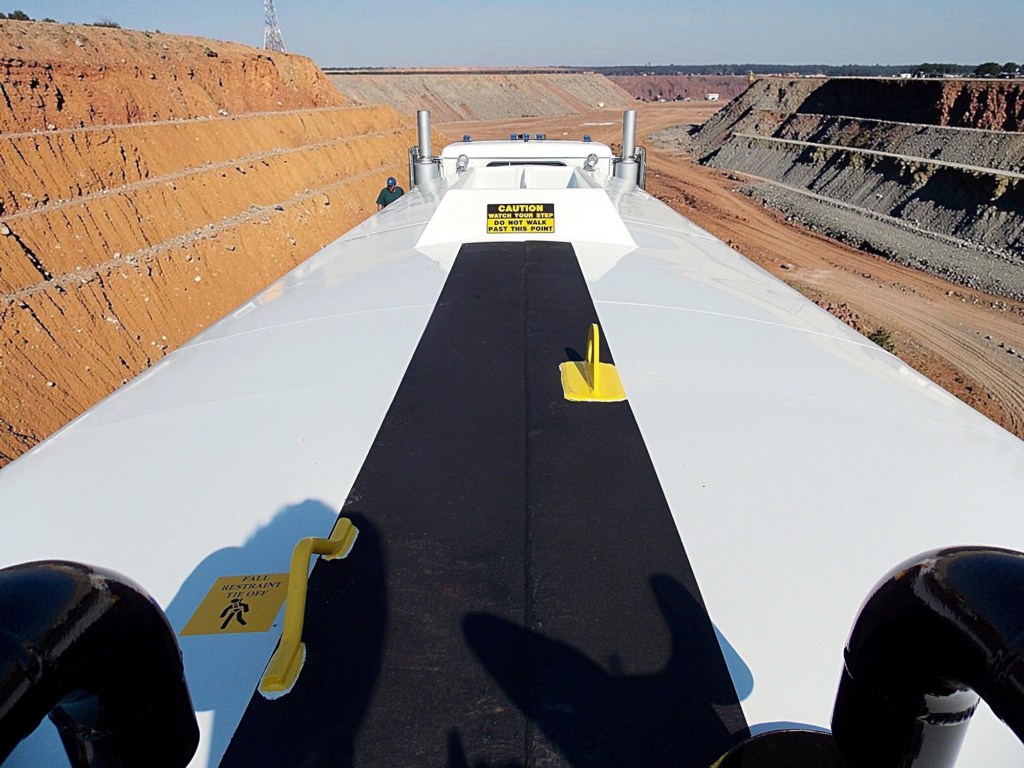

- Slotted hold down system & tie-off point
- Rear sight gauge
- 24" x 48" fill dome
- 8" round rear bumper w/ flex step
- Amber strobe light
- Safety kit
- D.O.T. lights, LED
- Paint (single color)
- Electronic lever throttle
- 2" or 3" pneumatic or manual side spray
- Street flush
- Extra spray valve at rear, or center valve at rear, top, or bottom
- Self-loading valving, pump, and coupling
- Two 10' hose sections with camlok ends
- Suction screen
- Storage tubes
- 3" foot valve
- Stainless steel tank
- Sight gauge (front driver side)

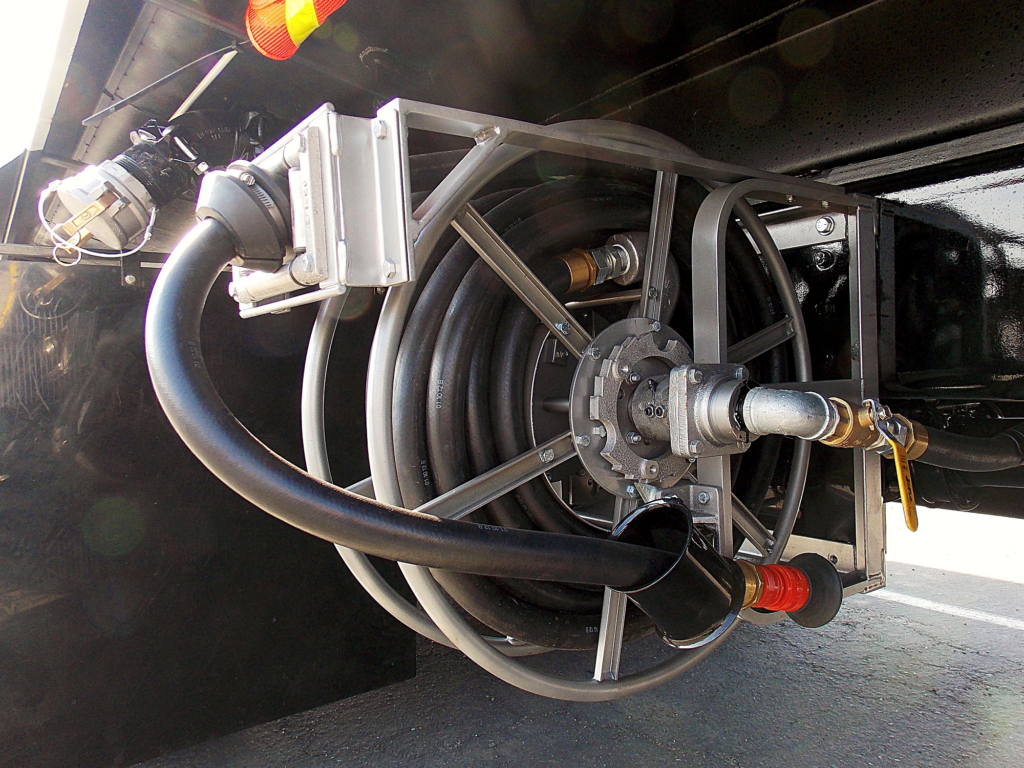

- Manual, spring, or power rewind reels with 50' of 1–2" hose
- 12 volt work lights
- Air or manual dump 4–10 inches
- Air throttle
- Monitor assembly
- Longitudinal baffle
- Internal tank coating
- Tool boxes 18" x 18" x 36" (space permitting)
- Light bars
READY TO PUT A MINE-SITE WATER TRUCK TO WORK?
From massive tank capacity to custom water delivery systems, McLellan can configure your Mine-Site Water Truck for the demands of the toughest operations.
