BUILT FOR
Bring the service bay to the job site. The Classic Luber keeps fuel, lubricants, air, water, grease, and maintenance essentials close to the equipment that needs them most.

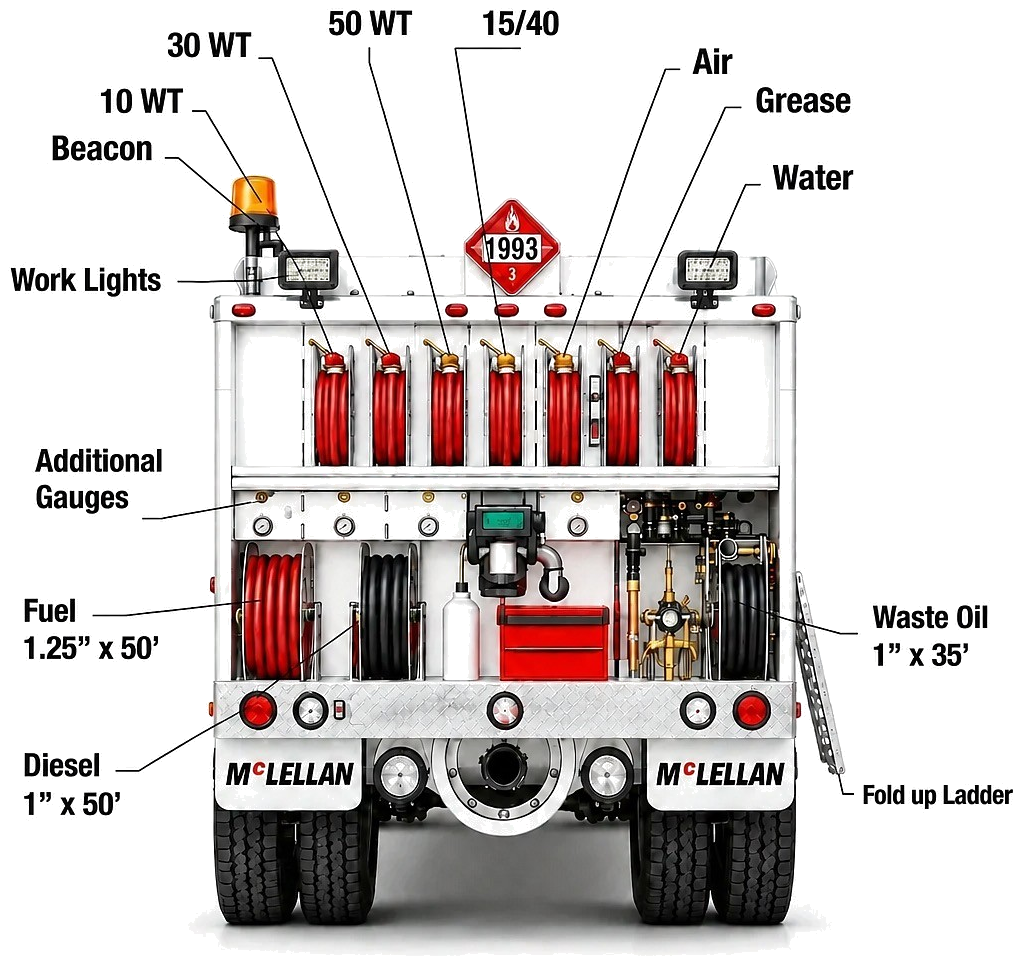

MCLELLAN CLASSIC LUBER CONFIGURATION
Example configuration — fully customizable to your spec.
Four Oil Compartments
Four product oil tanks, plus a hydraulic reservoir and used-oil compartments, keep every fluid separated, contained, and ready to deploy.

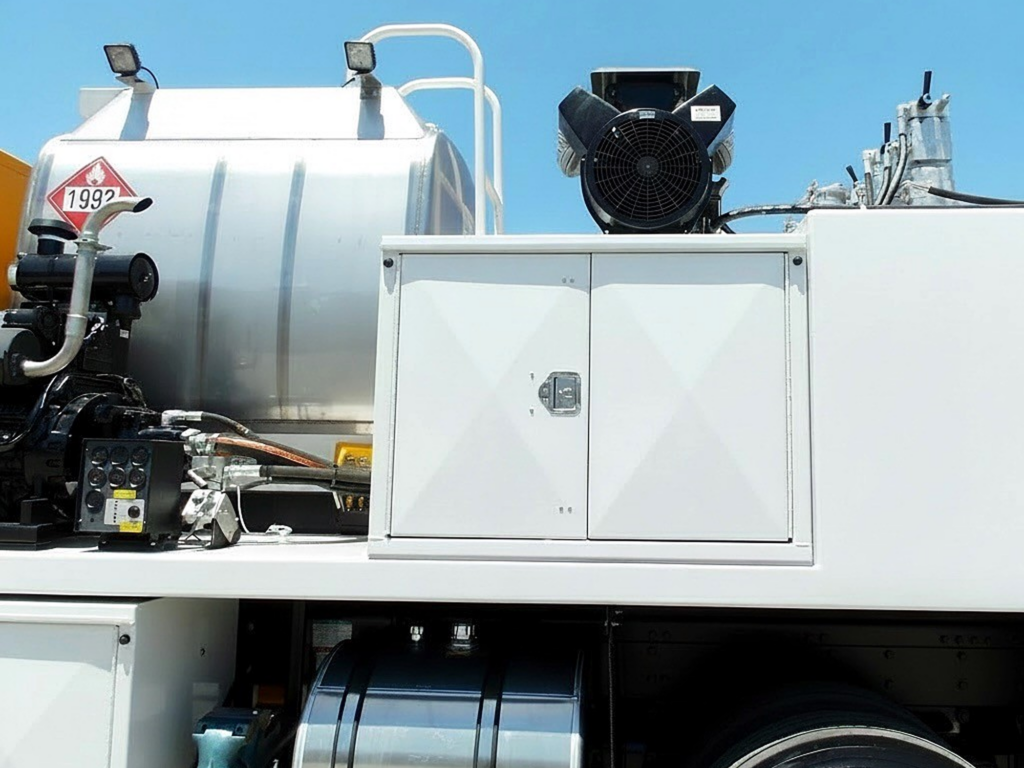

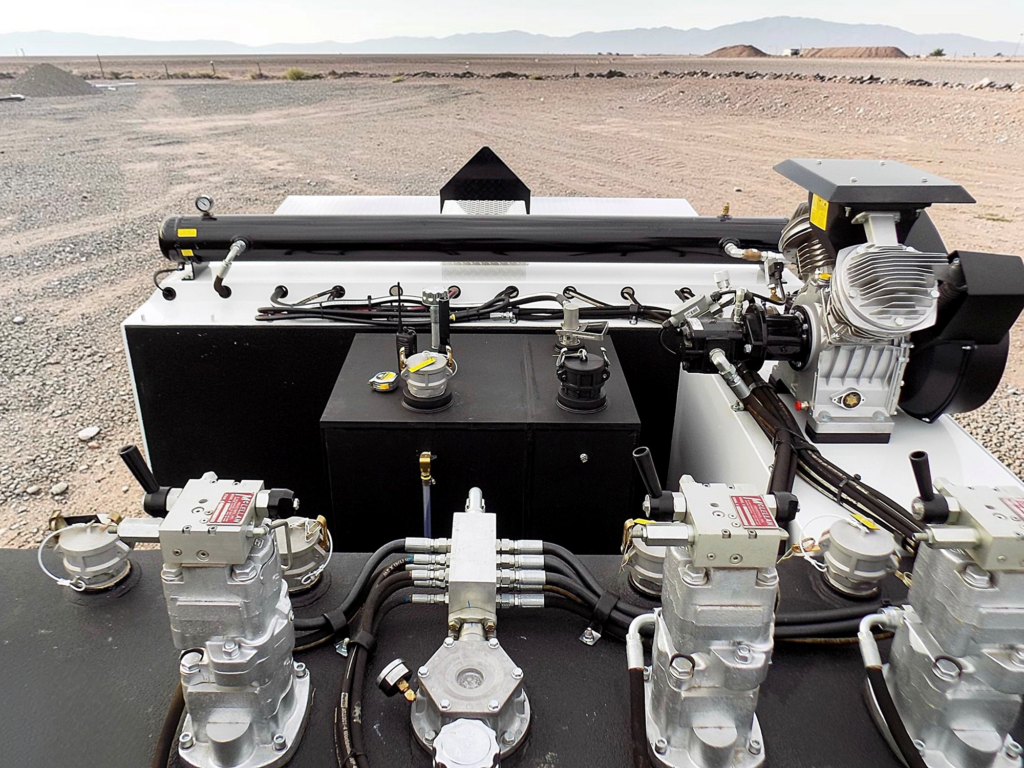

Hydraulic-Driven Pumps & Compressor
The truck's hydraulic system drives the fuel pump, four product oil pumps and a 30 CFM compressor; an air-driven 75:1 pump runs grease.
Heavy-Duty Rewind Hose Reels
Hydraulic rewind grease reel with 90' hose, plus spring rewind reels for fuel and product oils, keep hoses protected and job-site ready.
Sight Gauges & Gauge Panel
Oil tank sight gauges and a full gauge panel give techs a clear read on every fluid level at a glance.
The McLellan Advantage
- ✓ Hydraulically powered McLellan reels help prevent injury and strain from pulling hose.
- ✓ Specifications engineered to your needs help ensure proper vehicle maintenance.

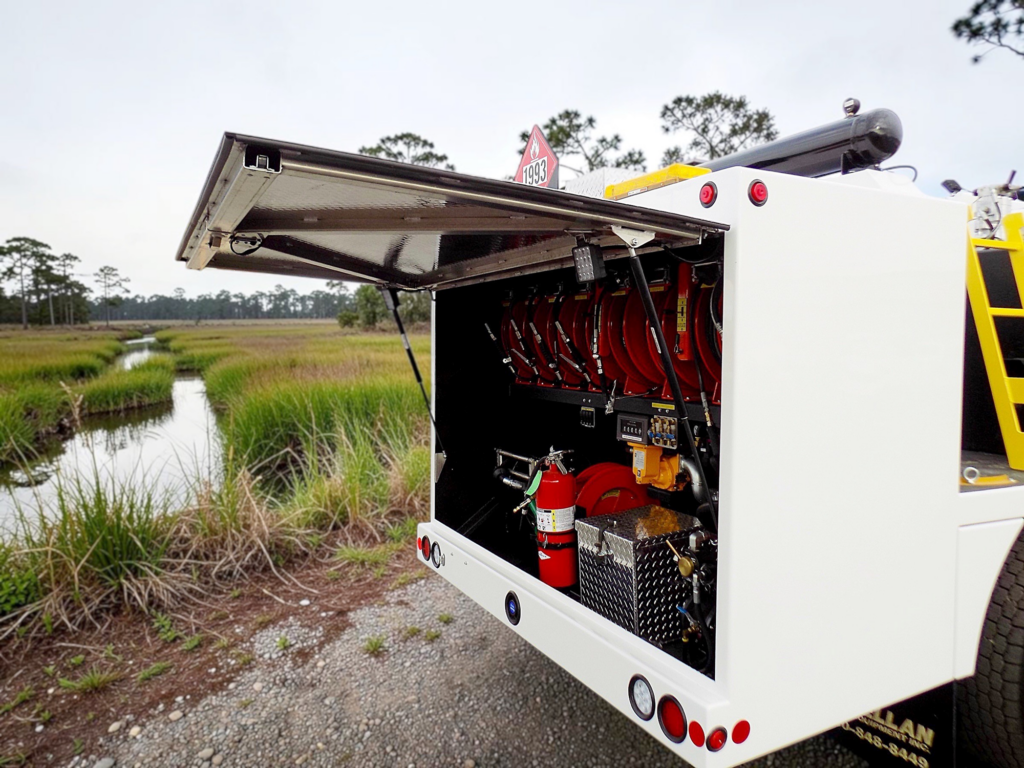

Compressor & pump bank, diamond-plate rear door.

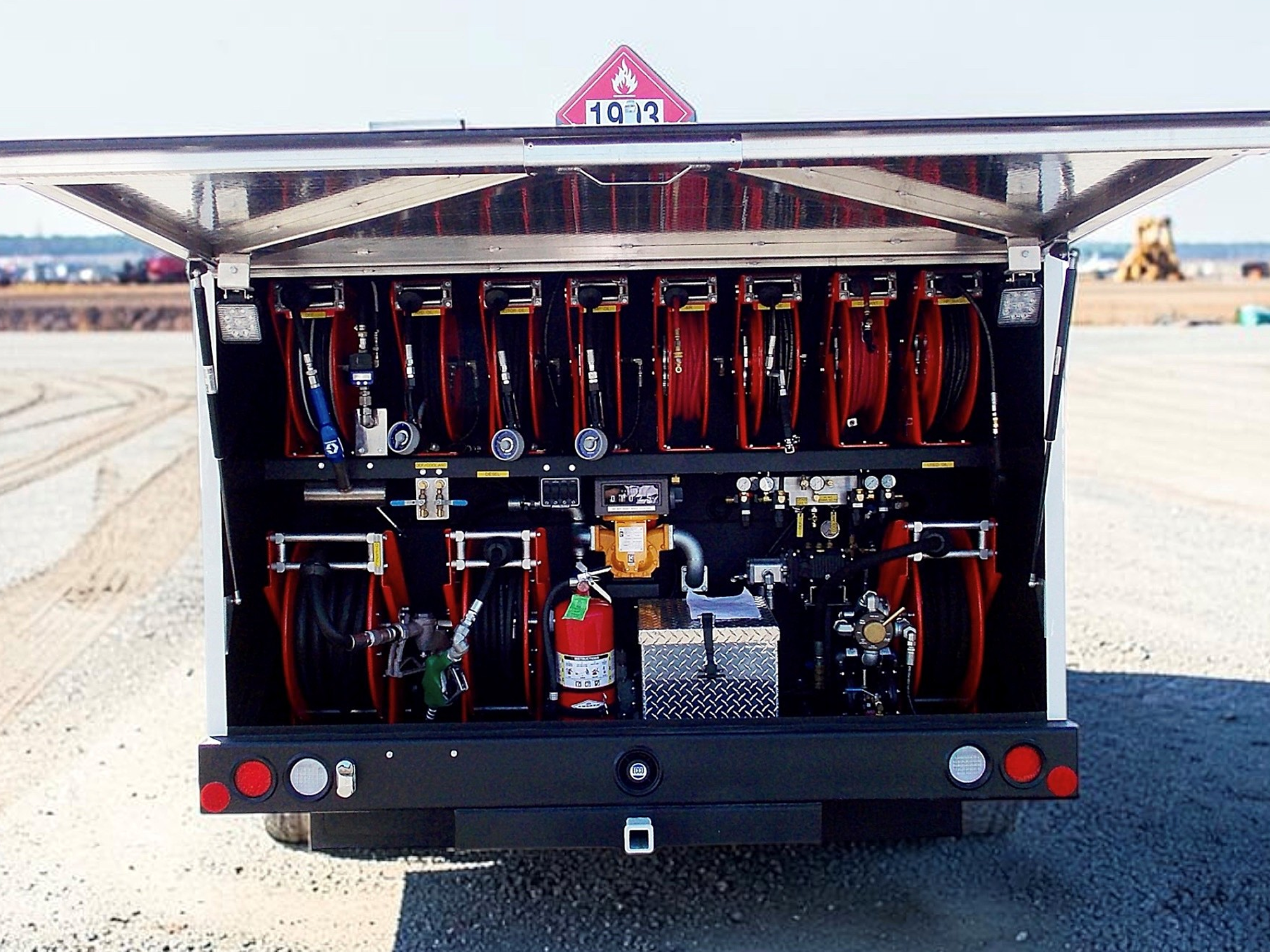

Reel bank — diesel, oils, grease & water hose stations.
- 600–1,200 gallon fuel tank, non-spec
- One or two compartments; 16" or 20" D.O.T. fill lid
- McLellan Classic cross tank, 75 or 100 gallon
- 40" deck
- Four (4) product oil tanks, 75 or 100 gallon (3–6 available)
- Hydraulic reservoir & pump w/ cooler
- Cab controls
- Four (4) McLellan heavy-duty hydraulic product pumps
- McLellan heavy-duty hose reels
- 75:1 air grease pump and reel
- Water/coolant system – 60/60 gal. "L" tank, 3/8" x 50' reel
- Hydraulic-driven fuel pump, 50 GPM, 1.25" x 50' reel
- Hydraulic-driven 30 CFM air compressor
- Two (2) 48"x24"x24" tool/filter boxes (polished aluminum diamond plate)
- Positive-displacement fuel meter
- Six (6) LED work lights
- Amber strobe light, driver's side rear
- Waste oil system – loads and unloads
- Used oil filter receptacle
- Hydraulic rewind grease reel w/ 90' hose
- Oil tank sight gauges
- D.O.T. LED stop/turn brake lights
- One-color paint
- Heavy- or medium-duty air pumps
- 1 1/2" high-flow fuel meter
- In-line fuel filter
- Roll-up or swing-up doors
- Wheel skirts
- D.O.T. 406
- After-frame extension
- 100-gallon oil tanks (in lieu of 75-gallon)
- LED lighting package
- Bottom load system
- Vapor recovery system, Phase 1 & 2 (inquire)
- High-pressure wash system, incl. tank
- DEF system (custom size) tank & hose reel
- Cross tank boxes, 24"x21"x24"
- Compressor box combo, 35"x35"x24"
- Extra product pump and reel
- Hydraulic rewind product reels
- Digital end-of-hose oil meters
- Hydraulic-driven grease pump
- 2" fuel hose & reel (in lieu of 1.25")
- Fuelcom or Wiggins fast-fuel nozzle
- Grease barrel/cover w/ heating coils
READY TO PUT A CLASSIC LUBER TO WORK?
From fluid capacity to custom fuel, lube, and maintenance systems, McLellan can configure your Classic Luber to meet any demand.
